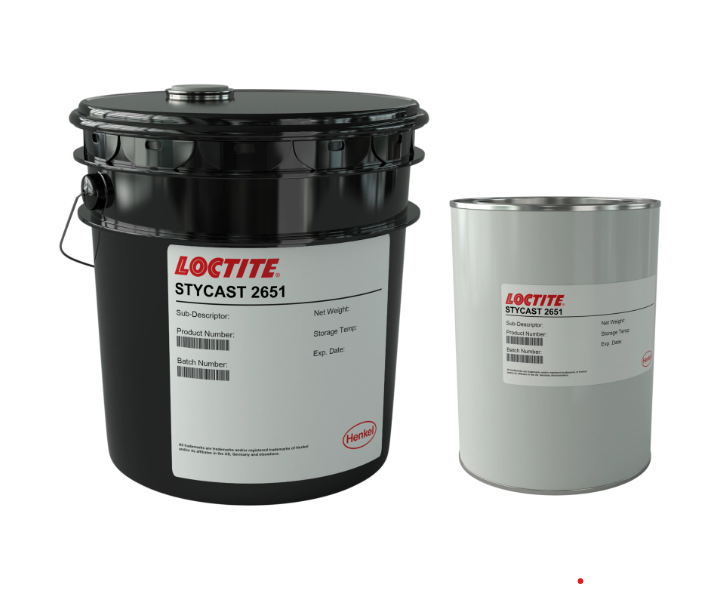

LOCTITE STYCAST 2651 CAT 11 is a black, dielectric-grade epoxy encapsulant designed for general-purpose applications. It offers excellent adhesion to various substrates and can be used with different catalysts.
Key Benefits:
| Property | LOCTITE STYCAST 2651 | LOCTITE CAT 11 | Mixed System |
|---|---|---|---|
| Appearance | Black | – | – |
| Viscosity (mPa·s) @ 25°C | 225,000 | 45 (at 65°C) | 25,000 |
| Density (g/cm³) | 1.65 | – | 1.56 |
| Shelf Life @ 25°C (days) | 274 | – | – |
| Work Life (100g @ 25°C) | – | – | >4 hours |
| Temperature (°C) | Cure Time |
|---|---|
| 80 | 8-16 hours |
| 100 | 2-4 hours |
| 120 | 30-60 min |
| Post-curing at the highest expected use temperature for 2-4 hours is recommended for optimal performance. |
| Property | LOCTITE STYCAST 2651 with LOCTITE CAT 11 |
|---|---|
| Hardness (Shore D) | 88 |
| Water Absorption (24-hour boil, %) | 0.1 |
| Thermal Conductivity (W/m-K) | 0.66 |
| Coefficient of Thermal Expansion (ppm/°C) | 40 |
| Operating Temperature Range (°C) | -55 to +155 |
| Property | Value |
|---|---|
| Volume Resistivity (ohm-cm) | 5 × 10¹⁵ |
| Dielectric Strength (kV/mm) | 17.7 |
| Dielectric Constant / Dissipation Factor @ 1 KHz | 4.6 / 0.01 |
| Property | Value (N/mm²) | Value (psi) |
|---|---|---|
| Flexural Strength | 103 | 15,000 |
| Compressive Yield Strength | 110 | 16,000 |
| Tensile Strength | 62 | 9,000 |
| Property | Value (%) |
|---|---|
| TML | 0.63 |
| CVCM | 0.01 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
