Item Name: 3M™ Charge-Collection Solar Tape 3011(L)
Manufacturer: 3M
Technologies: Electrically conductive acrylic adhesive with tin-plated copper foil backing
Color: Contact to Techniq VN for details
Cure Type: Pressure sensitive (self-adhesive, no curing required)

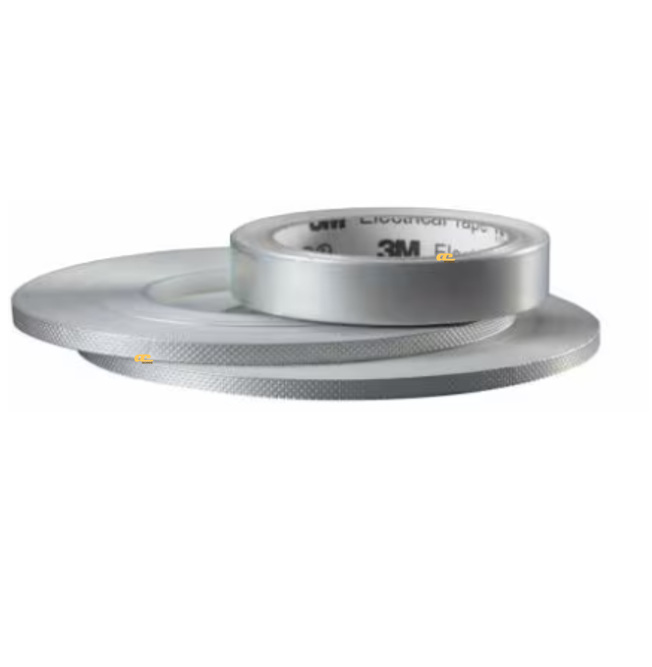

Package Size: 2 mm x 1200 m, level winding roll
Shelf Life: Contact to Techniq VN for details
1. Product Overview
3M™ Charge-Collection Solar Tape 3011(L) is a tin-plated copper foil tape engineered for solar applications, particularly in thin-film modules. It features a 1-oz dead soft copper foil backing with an electrically conductive acrylic adhesive that delivers stable performance across x, y, and z axes. The design ensures reliable solderability, compatibility with lamination processes, and consistent electrical conductivity, making it a dependable choice for solar panel charge collection and interconnection.
2. Applications
Charge collection in thin-film solar modules.
Electrical interconnection requiring stable conductivity.
Lamination processes in photovoltaic manufacturing.
Solderable joints in solar cell assembly.
3. Typical Properties
| Property | Value / Description |
|---|---|
| Adhesive Type | Acrylic (conductive, pressure-sensitive) |
| Backing Material | Tin-Plated Copper Foil (dead soft, 1 oz) |
| Backing Thickness | 0.035 mm |
| Total Thickness | 0.122 mm |
| Electrical Properties | Conductive in x, y, z axes |
| Compatibility | Supports lamination & soldering |
| Overall Dimensions | 2 mm width × 1200 m length |
