• Item Name: 3M™ Double Coated Tape 9741R
• Manufacturer: 3M
• Technologies: Acrylic adhesive
• Color: Red
• Cure Type: Pressure sensitive (self-adhesive, no curing required)
• Package Size: Contact to Techniq VN for details
• Shelf Life: Contact to Techniq VN for details
1. Product Overview

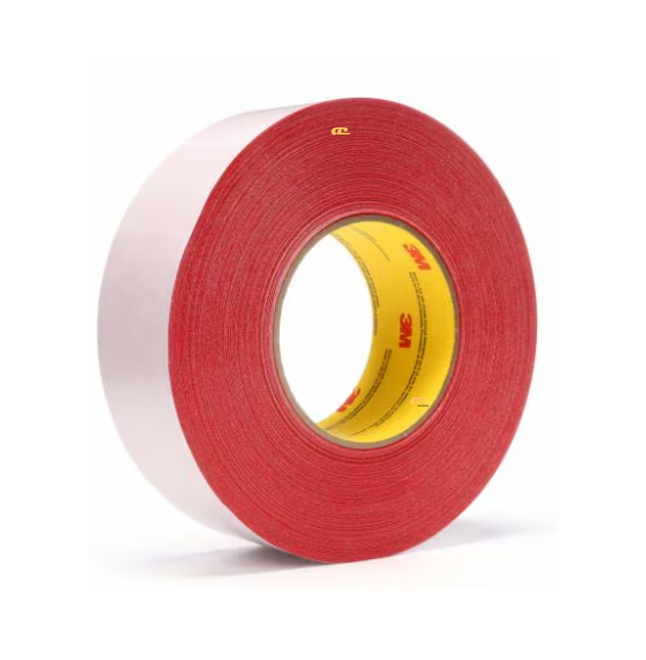

3M™ Double Coated Tape 9741R is a 6.5 mil hand-tearable double-sided tape featuring a polyester film carrier with acrylic adhesive. It is designed with ultra-high peel strength and delivers reliable bonding performance across a wide range of substrates, including low surface energy (LSE) plastics. The tape offers excellent resistance to UV exposure and good heat stability, making it suitable for both functional and decorative applications. Its red color enhances visibility during application, ensuring accuracy in placement.
2. Applications
Bonding decorative trims and finishes
Attaching plastics, metal profiles, and extrusions
General-purpose bonding across industrial and commercial uses
Reliable adhesion to LSE plastics and challenging substrates
3. Typical Properties
| Property | Description |
|---|---|
| Tape Type | Double coated, hand-tearable polyester film carrier |
| Total Thickness (without liner) | 6.5 mil (approx. 0.165 mm) |
| Carrier Material | Polyester film, 0.013 mm thick |
| Adhesive Type | Acrylic, pressure-sensitive, ultra-high peel |
| Color | Red |
| UV Resistance | Excellent |
| Heat Resistance | Good thermal stability |
| Key Performance | Strong peel adhesion, bonds well to LSE plastics, metals, and various substrates |
| Typical Roll Size | 48 mm x 55 m |
