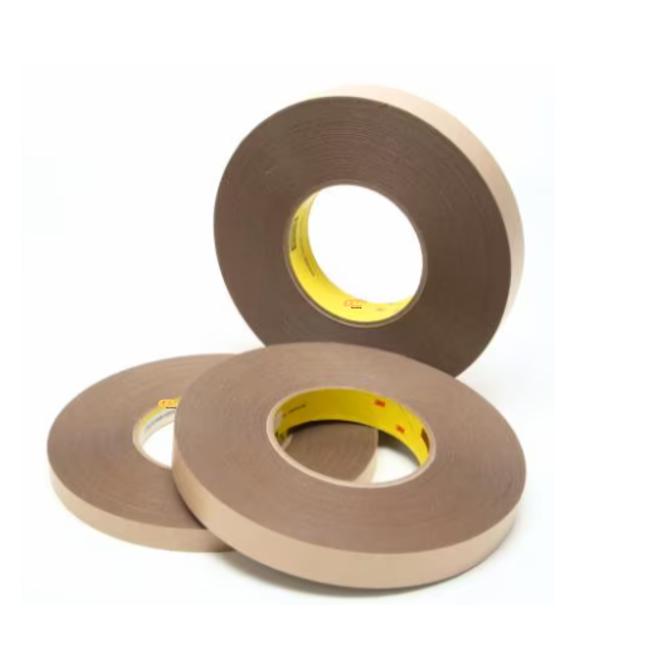

• Item Name: 3M™ Removable Repositionable Double Coated Tape 9425
• Manufacturer: 3M
• Technologies: Acrylic differential adhesive (420 permanent / 1050 removable), double-coated tape, UPVC carrier
• Color: Transparent
• Cure Type: Pressure sensitive (self-adhesive, no curing required)
• Package Size: Roll
• Shelf Life: Contact to Techniq VN for details
1. Product Overview
3M™ Removable Repositionable Double Coated Tape 9425 features a permanent high-tack acrylic adhesive on the face side and a medium-tack repositionable adhesive on the liner side. With a UPVC carrier, it offers dimensional stability, clean removability, and ease of die-cutting. This tape enables temporary mounting, resealing, and repositioning across various substrates including paper, plastics, foams, and films.
2. Applications
Point-of-purchase displays and posters
Reclosable bags, envelopes, and removable labels
Core starting and end tabbing for papers, foils, and films
Temporary holding of packaging materials (foam, cardboard)
Mounting promotional items, novelties, or changeable advertisements
Repositionable foam gasket attachment
Backlit signage and temporary labeling solutions
3. Typical Properties
| Property | Value / Description |
|---|---|
| Adhesive Type | Acrylic differential (Permanent 420 / Removable 1050) |
| Carrier Material / Thickness | UPVC, 0.04 mm |
| Total Tape Thickness (w/o liner) | 0.147 mm |
| Back-Side Adhesive Thickness | 0.06 mm (Removable 1050) |
| Face-Side Adhesive Thickness | 0.06 mm (Permanent 420) |
| Liner | 58# Polycoated Kraft Paper, Tan, 0.11 mm |
| Product Color | Transparent |
| Minimum / Maximum Temperature | -40 °C to 52 °C |
| Indoor/Outdoor Use | Both |
| Master Roll Length × Width | 329.2 m × 122 cm |
| Available Widths | 19.05 mm, 25.4 mm, 76.2 mm, 122 mm, 609.6 mm |
| Overall Length Options | 65.83 m, 66 m |
| Units per Case | 1, 3, 9, 12, 18 rolls |
