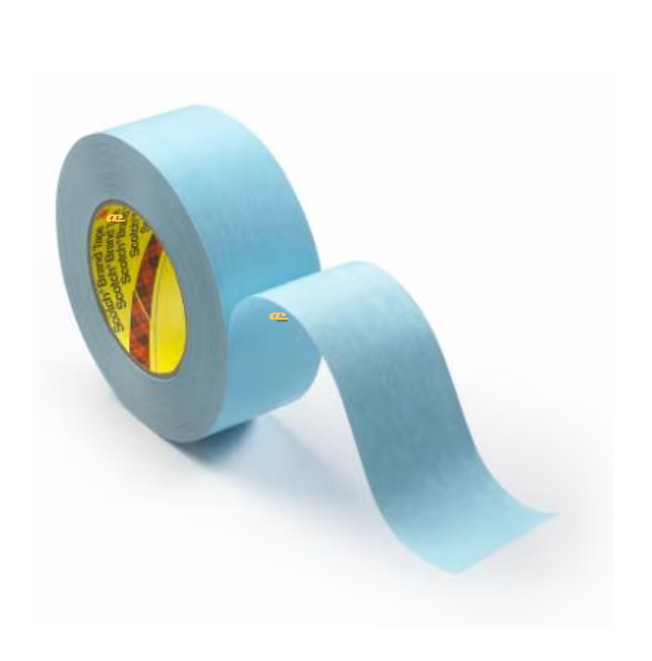

• Item Name: 3M™ Repulpable Newspaper Splicing System R9993
• Manufacturer: 3M
• Technologies: Repulpable adhesive, double-sided splittable tape, tissue carrier
• Color: Blue
• Cure Type: Pressure sensitive (self-adhesive, no curing required)
• Package Size: 12 Roll/Case
• Shelf Life: Contact to Techniq VN for details
1. Product Overview
3M™ Repulpable Newspaper Splicing System R9993 is a high-performance, double-sided splittable tape engineered for newspaper and non-heatset printing applications. It features a blue splicing side and clear tabbing side, with a tissue carrier that ensures stability and efficient handling. Designed for flying splice operations, it offers quick stick performance even at cold temperatures and withstands heat up to 400 °F. Its repulpable adhesive prevents contamination during recycling, meeting TAPPI UM-213 standards and FDA compliance for paper in food contact applications.
2. Applications
Straight-across flying paster splicing for newsprint
Tabbing and splicing in gravure, offset, and flexographic printing
Newspaper production with low-to-medium temperature processes
Printing operations requiring FDA-compliant and repulpable adhesives
Situations demanding heat resistance and cold-temperature bonding performance
3. Typical Properties
| Property | Value/Description |
|---|---|
| Adhesive Type | Repulpable adhesive |
| Backing (Carrier) Material | Tissue |
| Tape Type | Double-sided, splittable |
| Tape Thickness (without liner) | 0.11 mm |
| Splicing Side Thickness | Blue side: 2.5 mil; Clear tabbing side: 2.2 mil |
| Heat Resistance | Up to 400 °F (204 °C) |
| Cold-Temperature Performance | Maintains quick stick at low temperatures |
| Liner | Easy-release kraft split liner |
| Compliance | TAPPI UM-213 (Procedure A); FDA 21 CFR 176.170 compliant |
| Dimensions | Width: 37.5 mm; Length: 32.91 m; Units per case: 12 rolls |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
