• Item Name: 3M™ Scotch-Weld™ Epoxy Adhesive DP190 Translucent and Grey
• Manufacturer: 3M
• Technologies: Epoxy/Amine chemistry
• Color: Translucent (DP190 Translucent), Grey (DP190 Grey)
• Cure Type: Ambient temperature curing; full cure in 7–14 days
• Package Size: Contact to Techniq VN for details
• Shelf Life: 24 months (bulk containers); 15 months (duo-pak cartridges)
3M™ Scotch-Weld™ Epoxy Adhesive DP190 is a two-part, room-temperature curing adhesive available in Translucent and Grey formulations. Both variants have a 1:1 mix ratio, long work life (60–90 minutes), and exhibit excellent shear, peel strength, and environmental durability.
DP190 Translucent: Flexible, lower hardness, very high elongation.
DP190 Grey: Higher hardness, stronger mechanical strength, better environmental resistance.

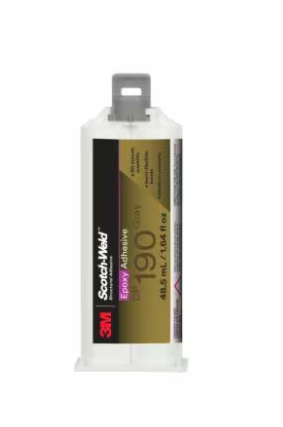

Supplied in Duo-Pak cartridges for convenient mixing/application, or in bulk containers.
Structural bonding of metals, plastics, glass, wood, and composites.
Suitable for electronics, general industrial assembly, and repair where durability under stress, impact, and environmental conditions is required.
Recommended for use with the 3M™ EPX Applicator System for controlled mixing and dispensing.
| Property | DP190 Translucent | DP190 Grey |
|---|---|---|
| Base Resin | Epoxy/Amine | Epoxy/Amine |
| Viscosity @24°C (cps) | Base: 2,000–8,000 Accel.: 7,000–15,000 |
Base: 75,000–150,000 Accel.: 40,000–80,000 |
| Net Weight (lbs/gal) | Base: 9.3–9.7 Accel.: 8.2–8.6 |
Base: 11.0–11.4 Accel.: 10.6–11.0 |
| Colour (Base/Accel.) | Clear / Amber | White / Grey |
| Mix Ratio (B:A) | 1:1 (vol.) 1.15:1 (wt.) |
1:1 (vol.) 1.06:1 (wt.) |
| Worklife (23°C, 2–20 g mass) | 60–80 min | 90 min |
| Property | DP190 Translucent | DP190 Grey |
|---|---|---|
| Colour | Translucent | Grey |
| Shore Hardness (ASTM D2240) | D 35 | D 60 |
| Tack-free Time | ~4 hrs | ~6 hrs |
| Handling Strength | 6 hrs | 8–12 hrs |
| Full Cure | 14 days (RT) | 7 days (RT) |
| Tensile Strength | 2,750 psi (19 MPa) | 3,500 psi (24 MPa) |
| Elongation | 120% | 30% |
| Glass Transition Temp. (Tg) | 10–27°C | 7–20°C |
| Volume Resistivity | 7.5×10¹⁰ ohm·cm | 5×10¹² ohm·cm |
| Dielectric Strength | 875 V/mil | 830 V/mil |
| Thermal Conductivity | 0.136 W/m·°C | 0.381 W/m·°C |
| Thermal Shock Resistance | Pass 5 cycles (+100°C ↔ –50°C) | Pass 5 cycles (+100°C ↔ –50°C) |
