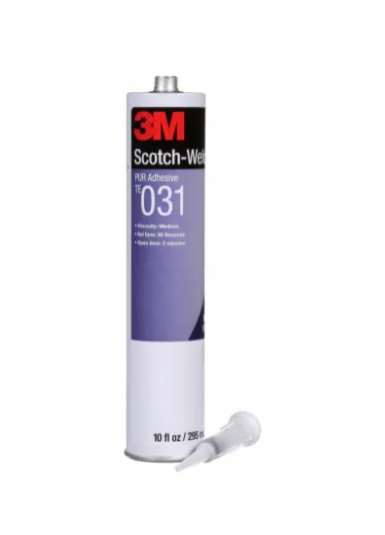

• Item Name: 3M™ Scotch-Weld™ Polyurethane Reactive Adhesives TE031, TE040, TS115 HGS, TS230
• Manufacturer: 3M
• Technologies: One-component, moisture-cure, polyurethane reactive (PUR) adhesive
• Color: White / Off-White
• Cure Type: Moisture curing, applied warm at 250°F (121°C)
• Package Size: 10 fl. oz. cartridge, 2 kg foil bag, 1 gal can, 5 gal pail, 55 gal drum
• Shelf Life: 6–12 months depending on container type
3M™ Scotch-Weld™ Polyurethane Reactive (PUR) Adhesives are one-component, moisture-curing urethane adhesives. They are applied warm and quickly form strong, durable bonds on a wide variety of substrates.
Key Features:
100% solids, one-component system
Rapid strength build-up with variable set times
High strength and highly plasticizer-resistant
Broad substrate adhesion (wood, plastics, FRP, metal, glass)
Suitable for bonding heat-sensitive materials
Variants:
TE031 – Extrudable grade, fast set, ideal for plastics (e.g., polystyrene, polyacrylic)
TE040 – Low viscosity, fast set, for wood, plastics, metals, and glass
TS115 HGS – Standard grade, bonds wood, FRP, plastics, metals, glass
TS230 – Sprayable/extrudable, long set time, ideal for large-area plastics, aluminum, glass
Bonding wood, FRP, and engineering plastics (polystyrene, polyacrylic, ABS, PVC, polycarbonate)
Joining plastics to metal and glass (not recommended for metal-to-metal or glass-to-glass)
Assembly in furniture, automotive, construction, and composites industries
Large surface bonding where controlled set time (fast or extended) is required
| Property | TE031 | TE040 | TS115 HGS | TS230 |
|---|---|---|---|---|
| Application Temp | 250 °F (121 °C) | 250 °F (121 °C) | 250 °F (121 °C) | 250 °F (121 °C) |
| Viscosity @ 250 °F (cps) | 13,000 | 7,000 | 16,000 | 9,000 |
| Color (solid) | White/Off-White | White/Off-White | White/Off-White | White/Off-White |
| Open Time (min) | 2 | 2 | 10 | 4 |
| Set Time (sec) | 30 | 40 | 60 | 150 |
| Density (lbs/gal molten) | 8.7 | 8.9 | 9.0 | 9.1 |
| Property | TE031 | TE040 | TS115 HGS | TS230 |
|---|---|---|---|---|
| Shore D Hardness | 50 | 35 | 47 | 45 |
| Modulus (psi) | 5,600 | 2,850 | 3,300 | 5,400 |
| Tensile Strength @ Break (psi) | 3,900 | 2,750 | 3,200 | 3,300 |
| Elongation @ Break (%) | 725 | 860 | 600 | 700 |
| Substrate | TE031 | TE040 | TS115 HGS | TS230 |
|---|---|---|---|---|
| Maple (23 °C) | 1,372 | 1,334 | 1,722 | 1,210 |
| FRP (23 °C) | 1,199 | 1,205 | 1,110 | 1,241 |
| Polycarbonate (23 °C) | 1,374 | 1,331 | 1,373 | 1,822 |
| ABS (23 °C) | 1,213 | 1,094 | 1,178 | 1,272 |
| PVC (23 °C) | 1,795 | 1,354 | 1,583 | 1,779 |
| Maple (82 °C) | 499 | 382 | 109 | 340 |
| FRP (82 °C) | 421 | 377 | 53 | 368 |
| Substrate | TE031 | TE040 | TS115 HGS | TS230 |
|---|---|---|---|---|
| FRP | 96 | 66 | 95 | 90 |
| Polycarbonate | 95 | 60 | 87 | 95 |
| ABS | 84 | 65 | 62 | 55 |
| PVC | 100 | 90 | 92 | 76 |
| Aluminum | 32 | 52 | 72 | 51 |
| Glass | 3 | 54 | 81 | 62 |
| Time | TE031 | TE040 | TS115 HGS | TS230 |
|---|---|---|---|---|
| 10 min | 117 | 213 | 40 | 350 |
| 1 hour | 250 | 302 | 160 | 387 |
| 24 hours | 1,035 | 863 | 533 | 877 |
| 1 week | 1,199 | 1,205 | 1,110 | 1,241 |
