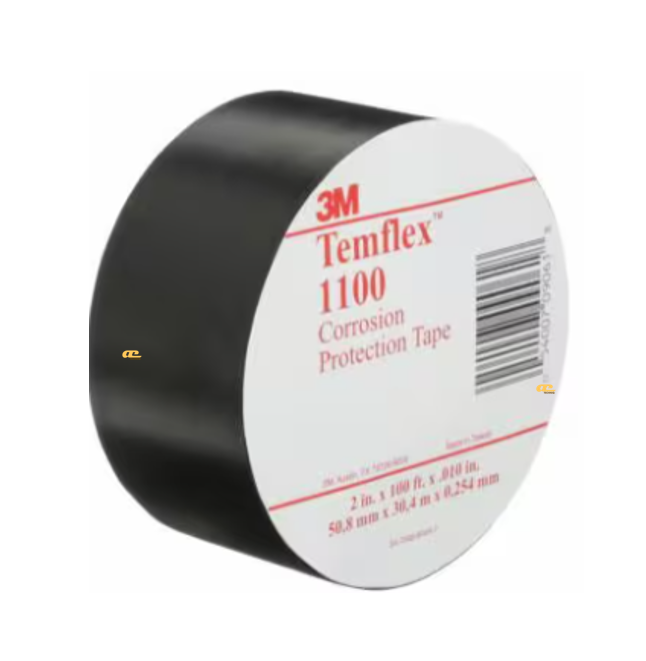

Item Name: 3M™ Temflex™ Vinyl Corrosion Protection Tape 1100
Manufacturer: 3M
Technologies: Rubber resin adhesive on PVC backing, UV resistant
Color: Black (unprinted)
Cure Type: Pressure sensitive (self-adhesive, no curing required)
Package Size: 2 in x 100 ft (50.8 mm x 30.5 m), 10 mil, 24 rolls/case
Shelf Life: Not specified in source
3M™ Temflex™ Vinyl Corrosion Protection Tape 1100 is a 10 mil thick, general-use tape designed to protect conduits, pipes, and metallic cable jackets against corrosion. Constructed with a PVC backing and a rubber-resin adhesive, it provides excellent conformability and strong adhesion even on irregular surfaces. The tape resists abrasion, punctures, and electrolytic reactions, making it suitable for both above- and below-ground applications. Its black, UV-resistant design ensures durability across a wide service temperature range, offering reliable and economical corrosion protection.
Corrosion protection for pipes, conduits, and metallic cable jackets
General industrial and construction use
Protection of buried or exposed metal surfaces against abrasion and environmental damage
| Property | Value |
|---|---|
| Adhesive Type | Rubber-resin |
| Backing Material | PVC |
| Total Thickness | 0.30 mm |
| Overall Thickness | 0.25 mm |
| Elongation at Break | 200% |
| Tensile Strength | — |
| Operating Temperature | -12 °C to 49 °C |
| Installation Temperature (max) | 49 °C |
| Shelf Life | — |
| Features | UV-resistant |
| Specifications | RoHS 2011/65/EU compliant |
| Product Form | Roll (50.8 mm width × 30.5 m length) |
| Color | Black |
