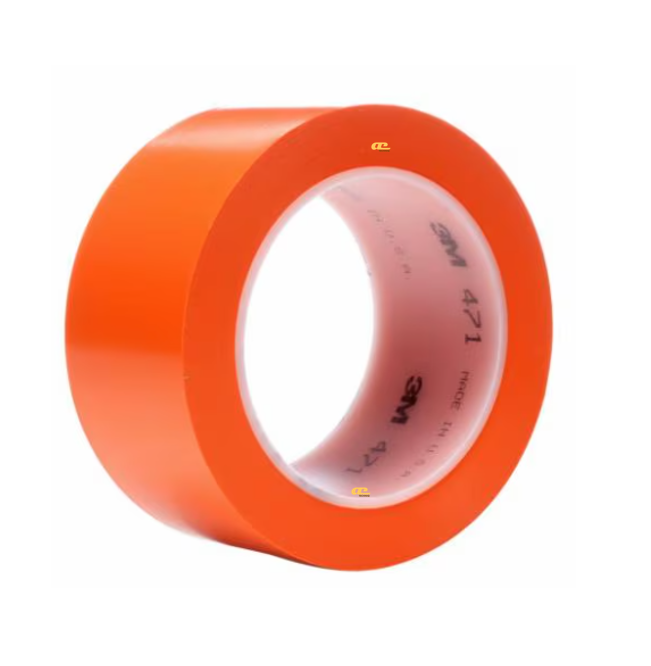

Item Name: 3M™ Vinyl Tape 471
Manufacturer: 3M
Technologies: Rubber adhesive with conformable vinyl backing
Color: Orange
Cure Type: Pressure sensitive (self-adhesive, no curing required)
Package Size: 2 in x 36 yd (50.8 mm x 32.9 m), 24 rolls/case
Shelf Life: 18 months
1. Product Overview
3M™ Vinyl Tape 471 is a high-performance, conformable vinyl tape designed for versatile industrial use, including marking, masking, and surface protection. It features vivid, abrasion-resistant colors that maintain brightness even under heavy wear and solvent exposure. Its unique stretch properties allow it to conform to curved, convex, and irregular surfaces without lifting. With a quick-bonding rubber adhesive, it adheres securely to a wide variety of substrates yet removes cleanly in one piece, reducing cleanup and labor costs.
2. Applications
Lane and safety marking in factories, warehouses, and public spaces.
Temporary surface protection and sealing.
Fine line paint masking, anodizing, and electroplating.
Color coding, bundling, and reinforcing.
Storage canister/container sealing and decorative marking.
3. Typical Properties
| Property | Value / Description |
|---|---|
| Adhesive Type | Rubber |
| Adhesion Strength | 28 N/100 mm |
| Backing Material | Vinyl |
| Backing Thickness | 0.10 mm |
| Total Thickness | 0.14 mm (5.2 mil) |
| Back-Side Adhesive Thickness | 0.03 mm |
| Operating Temperature Range | 4 °C to 77 °C |
| Elongation at Break | 130% |
| Tensile Strength | 24.5 N/100 mm |
| Shelf Life | 18 months |
| Dimensions | 50.8 mm width × 32.9 m length |
| Units per Case | 24 rolls |
