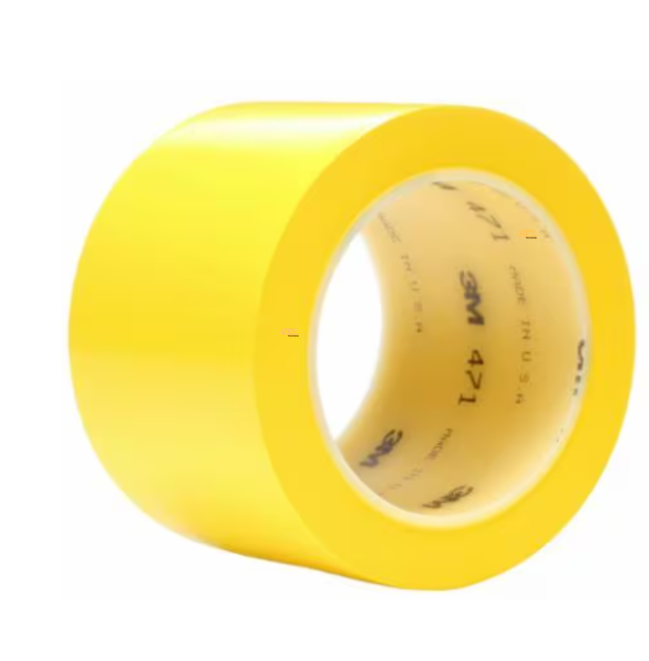

Item Name: 3M™ Vinyl Tape 471
Manufacturer: 3M
Technologies: Rubber adhesive with conformable vinyl backing
Color: Yellow
Cure Type: Pressure sensitive (self-adhesive, no curing required)
Package Size: 48 in x 36 yd (1219.2 mm x 32.91 m), 1 roll/case, untrimmed
Shelf Life: 18 months
3M™ Vinyl Tape 471 is a high-performance, versatile vinyl tape designed for floor and safety marking, temporary protection, masking, color coding, and sealing. With excellent stretch properties, it conforms to irregular, curved, and convex surfaces without lifting. The rubber adhesive ensures quick adhesion and clean removal, while the durable backing resists abrasion, moisture, and solvents. Its vivid color provides clear visual cues, making it suitable for demanding industrial environments.
Lane and safety marking
Temporary surface protection
Anodizing and electroplating masking
Fine line paint masking
Color coding and hazard identification
Canister and container sealing
Bundling and reinforcing
Decorative marking
| Property | Value |
|---|---|
| Adhesion Strength | 28 N/100 mm |
| Tensile Strength | 24.5 N/100 mm |
| Elongation at Break | 130% |
| Total Thickness | 0.14 mm |
| Backing Material | Vinyl (0.1 mm thick) |
| Adhesive Type | Rubber |
| Operating Temperature | Up to 76 °C |
| Shelf Life | 18 months |
| Product Color | Yellow |
| Form | Roll (1219.2 mm width × 32.91 m length) |
