Item Numbers: ALPHA 120J (benchtop design, handheld dispensing unit, integrated 7L melt tank, 3L optional)
Manufacturer: LPMS USA
Application: Low pressure molding for PCB and electronics encapsulation, waterproofing, strain relief, vibration and chemical protection
Dispensing Control: Handheld dispensing unit, one integrated 7L square melt tank, 3L round optional, 3 temperature zones
Size & Weight: 610 × 320 × 405 mm, 265 lbs
Power & Certification: 220 VAC, 1 Phase, 50/60 Hz, 25A, air 90–110 PSI, 2.5 CFM
More information & technologies: Contact to Techniq VN for details. (Email: info@techniq.vn & Tel: +84 88 990 19 29)

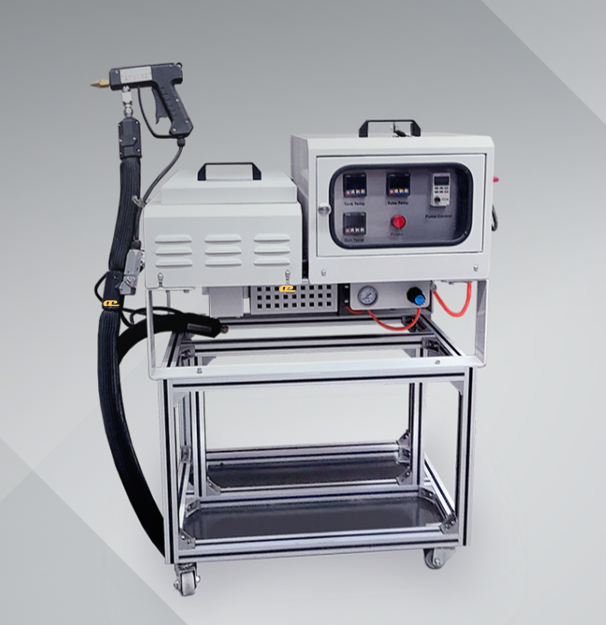

The ALPHA 120J is a benchtop low pressure molding machine engineered for high-efficiency encapsulation processes. It features a handheld dispensing unit coupled with a high-volume melt tank, offering flexibility and productivity in demanding production environments. Integrated temperature, pressure, and speed controls ensure precision and consistency, while its robust design makes it well-suited for applications requiring both volume and accuracy.
The ALPHA 120J is widely used for electronics protection and encapsulation, including circuit boards, connectors, sensors, switches, and batteries. It provides waterproofing up to IP69, strain relief for cables, and superior resistance against vibration, impact, temperature fluctuations, and chemicals. By replacing traditional potting, sealing, and conformal coating methods, it streamlines manufacturing, reduces cycle times, and enhances design flexibility, making it highly cost-effective for modern electronic assembly lines.
| Parameter | Specification |
|---|---|
| Machine Dimensions | 610 × 320 × 405 mm (23.95 × 12.60 × 15.90 in) |
| Weight | 265 lbs |
| Electricity | 220 VAC, 1 Phase, 50/60 Hz, 25A |
| Air Input | 90 – 110 PSI |
| Air Volume | 2.5 CFM |
| Melt Tank Capacity | 7L Square Standard; 3L Round Optional |
| Temperature Control Zones | 3 |
| Application Pressure Range | 20 – 500 psi |
| Application Viscosity Range | 1,000 – 10,000 cps |
| Performance Temperature Range | -65°C to 200°C |
| Material Compliance | Solvent-free, VOC-free, RoHS and REACH compliant |
| Protection Ratings | IP65–69 (dust-tight and waterproof) |
