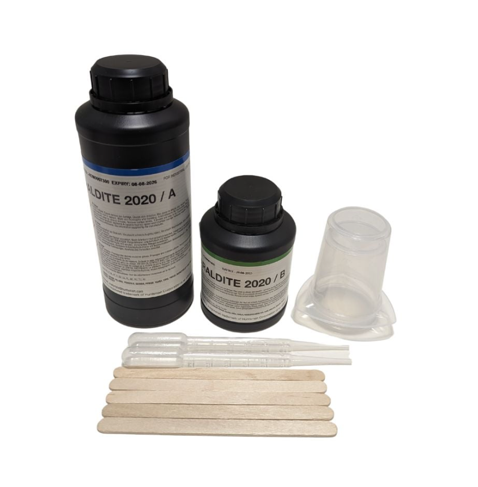

Item Name: Araldite® 2020
Manufacturer: Huntsman Advanced Materials
Technologies: Two-component epoxy adhesive
Color: Water white (clear)
Cure Type: Room temperature curing
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
Araldite® 2020 is a two-component, low-viscosity, water-white epoxy adhesive, specifically designed for glass bonding. It cures at room temperature and has a refractive index close to that of glass, making it ideal for transparent assemblies, clear castings, and laminates. It is versatile, capable of bonding metals, ceramics, rigid plastics, rubbers, and other commonly used materials.
Glass bonding and laminating.
Bonding of ceramics and optically clear assemblies.
Adhesion to metals (aluminium, copper, brass, stainless steel, galvanised steel).
Bonding of plastics (ABS, polycarbonate, nylon, SMC).
Clear casting and encapsulation applications where transparency is critical.
| Property | Component A (Resin) | Component B (Hardener) |
|---|---|---|
| Appearance | Water white | Water white |
| Specific Gravity | ~1.12 | ~0.95 |
| Viscosity (25°C, mPa·s) | 100–200 | 70–170 |
| Property | Value | Notes |
|---|---|---|
| Appearance | Water white | – |
| Specific Gravity | ~1.1 | – |
| Viscosity (25°C) | ~150 mPa·s | Low viscosity |
| Mix Ratio (by weight) | 100:30 | Resin:Hardener |
| Mix Ratio (by volume) | 100:35 | Resin:Hardener |
| Pot Life (100 g at 25°C) | 40–50 min | – |
| Refractive Index | 1.553 | Similar to glass |
| Property | Value | Condition |
|---|---|---|
| Lap Shear Strength (metals) | 15–25 N/mm² | Aluminium, steel, copper, brass, cured 16h/40°C |
| Lap Shear Strength (plastics) | 5–10 N/mm² | ABS, polycarbonate, nylon, SMC |
| Lap Shear Strength (glass) | ~10–15 N/mm² | Compression lap shear |
| Peel Strength | 0.2 N/mm | Aluminium, cured 16h/40°C |
| Flexural Strength | 75 MPa | ISO 178, cured 16h/40°C |
| Flexural Modulus | 2400 MPa | – |
| Glass Transition Temperature (Tg) | ~40°C | – |
| Thermal Cycling Resistance | 4.5 N/mm² | 100 cycles, -30°C to 70°C |
| Weather & Chemical Resistance | Retains 70–80% strength after 90 days | Tropical, heat ageing, immersion tests |
