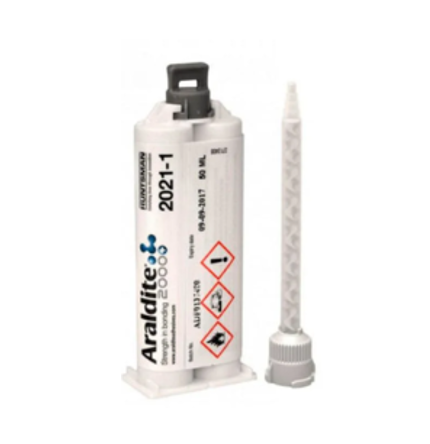

Item Name: Araldite® 2021-1
Manufacturer: Huntsman Advanced Materials
Technologies: Two-component toughened methacrylate adhesive system
Color: Component A – Off white; Component B – Yellow/greenish; Mixed – Pale yellow
Cure Type: Room temperature curing
Package Size: Contact to Techniq VN for details.
Shelf Life: 18 months
Araldite® 2021-1 is a two-component, toughened methacrylate structural adhesive.
Key properties: rapid curing, toughened, multipurpose, bonds plastics, composites, and metals, serviceable up to 100°C.
Mix ratio: 1:1 by weight or volume.
Supplied in cartridges with static mixers for ease of use.
Not suitable for copper, brass, or copper alloys (Araldite® 2022-1 or 2047-1 recommended instead).
General-purpose structural bonding in industries requiring fast assembly.
Bonds well to aluminium, steel, stainless steel, galvanised steel, and many plastics (ABS, PVC, PMMA, PC, GRP, SMC, CFRP).
Delivers durable joints with resistance to humidity, fuels, oils, solvents, and weathering.
Typical layer thickness: 0.25–0.5 mm (higher for certain metals).
| Property | 2021-1 A | 2021-1 B | Mixed Adhesive |
|---|---|---|---|
| Colour | Off white | Yellow/greenish | Pale yellow |
| Specific gravity | 1.02 | 0.95 | ~1.0 |
| Viscosity at 25°C (Pa·s) | 15–50 | 10–50 | Thixotropic |
| Pot life (100g, 25°C) | – | – | ~3 min |
| Time to peak exotherm (20g) | – | – | 7–15 min |
| Temp (°C) | Time to LSS >1 MPa | Time to LSS >10 MPa |
|---|---|---|
| 10 | 20 min | 30 min |
| 15 | 13 min | 19 min |
| 23 | 9 min | 13 min |
| 40 | 2 min | 6 min |
| Property | Value | Test Method |
|---|---|---|
| Tensile strength | 42 MPa | ISO 527 |
| Tensile modulus | 1800 MPa | ISO 527 |
| Elongation at break | >10% | ISO 527 |
Lap shear strength (ISO 4587, 16h cure at 40°C, 23°C test, sandblasted & degreased):
| Substrate | Strength (MPa) |
|---|---|
| Aluminium L165 | ~22 |
| Steel 37/11* | ~25 |
| Stainless steel V4A | ~15 |
| Galvanised steel | ~18 |
| Plastics (ABS, PVC, PMMA, PC, GRP, SMC, CFRP) | Substrate failure in most cases |
(*Performance may be lower with thinner bond lines.)
