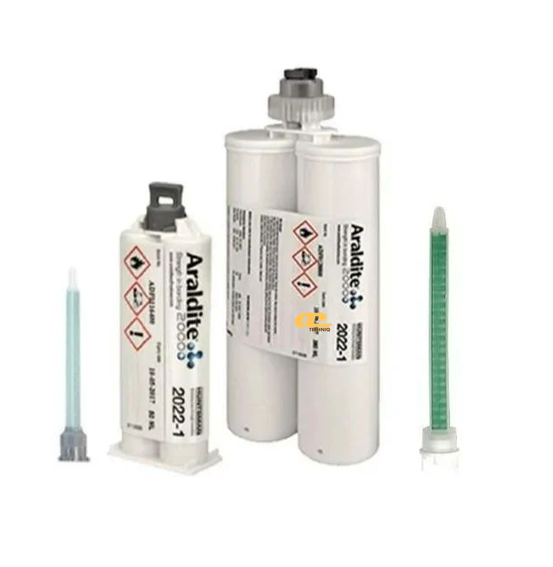

Item Name: Araldite® 2022-1
Manufacturer: Huntsman Advanced Materials
Technologies: Two-component methacrylate-based structural adhesive
Color: Component A – Off white; Component B – Beige/yellow; Mixed – Pale yellow
Cure Type: Room temperature curing
Package Size: Contact to Techniq VN for details.
Shelf Life: 24 months
Araldite® 2022-1 is a two-component, room-temperature curing, methacrylate-based structural adhesive.
Mix ratio: 1:1 by volume (100:95 by weight).
Working time: 10–12 minutes at 25°C.
Cures rapidly to high strength; serviceable up to 100°C (212°F).
Features: high peel strength, excellent adhesion to plastics, composites, and metals, suitable for multipurpose rapid assembly.
Designed for rapid assembly operations in industrial and structural bonding.
Effective with metals (aluminium, steel, stainless steel), plastics (ABS, PVC, PC, PMMA), and composites.
Provides durable bonds resistant to water, solvents, gasoline, acids, and weathering.
| Component | Appearance | Density (g/cm³) | Viscosity at 25°C (cPs) | Flash Point (°F) |
|---|---|---|---|---|
| 2022-1 A | Off white | 0.99 | 228,600 | 10 |
| 2022-1 B | Beige / yellow | 0.94 | 45,200 | 10 |
| Property | Value |
|---|---|
| Appearance | Pale yellow |
| Density (g/cm³) | ~0.98 |
| Working time (25°C, 10 g) | 10–12 min |
| Mix ratio (by volume) | 1:1 |
| Mix ratio (by weight) | 100:95 |
| Condition | Lap Shear Strength >145 psi (1 MPa) | Lap Shear Strength >1450 psi (10 MPa) |
|---|---|---|
| 23°C, 55% RH | 28 min | 30 min |
Metal-Metal Joints (psi)
| Substrate | Cured 25°C/24h | Cured 40°C/16h |
|---|---|---|
| Aluminium 2024T3 Clad | 4,440 | 3,680 |
| Treated steel RC #14 | 3,530 | 2,560 |
| Stainless steel V4A | 3,200 | 3,080 |
Plastic-Plastic Joints (psi, substrate failure)
| Substrate | Cured 25°C/24h | Cured 40°C/16h |
|---|---|---|
| ABS | 480 | 500 |
| PVC | 820 | 790 |
| PC | 750 | 990 |
| PMMA | 570 | 560 |
Immersion (40°C cure, 23°C test, psi)
| Medium | Initial | 30 days | 60 days | 90 days |
|---|---|---|---|---|
| Gasoline | 3,680 | 3,020 | 3,190 | 2,950 |
| 10% Acetic acid | 3,680 | 3,750 | 3,600 | 3,500 |
| Xylene | 3,680 | 3,360 | 3,420 | 3,190 |
| Water | 3,680 | 3,640 | 3,740 | 3,680 |
