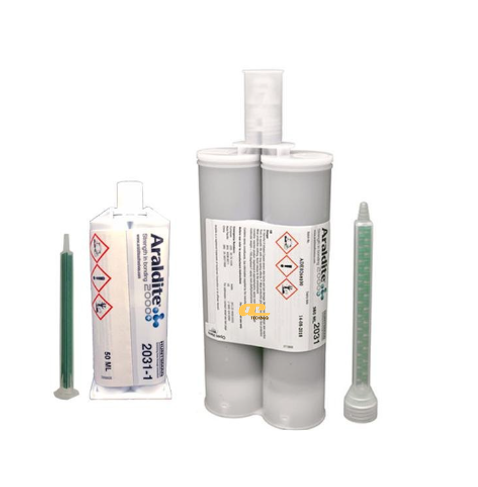

Item Name: Araldite® 2031-1
Manufacturer: Huntsman Advanced Materials
Technologies: Epoxy paste adhesive, two-component system
Color: Black paste
Cure Type: Room temperature curing
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
Araldite® 2031-1 is a black, two-component, room-temperature curing epoxy paste adhesive. It is thixotropic and non-slumping up to 10 mm thickness. The system is toughened, resilient, and highly weather-resistant, with integrated spacers ensuring a minimum bond line of 0.05 mm. It is designed to provide durable bonding performance on metals, composites, and engineering plastics.
Bonding of metals (aluminium, steel, stainless steel, copper, brass, galvanised steel).
Bonding of composites (GRP, CFRP, SMC).
Adhesion to engineering plastics (ABS, PA, PC, PMMA, PVC).
Structural applications requiring toughness, peel resistance, and weathering stability.
Suitable for both manual application and bulk processing with metering/mixing equipment.
| Property | Component A (Resin) | Component B (Hardener) |
|---|---|---|
| Appearance | Black paste | Black paste |
| Specific Gravity | ~1.2 | ~1.4 |
| Viscosity (25°C) | Thixotropic | Thixotropic |
| Property | Value | Notes |
|---|---|---|
| Appearance | Black paste | – |
| Specific Gravity | ~1.3 | – |
| Viscosity | Thixotropic | Non-slumping up to 10 mm |
| Mix Ratio (by weight) | 100:120 | Resin:Hardener |
| Mix Ratio (by volume) | 100:100 | Resin:Hardener |
| Pot Life (100 g at 25°C) | 60–70 min | – |
| Lap Shear Strength at 25°C | >20 MPa | On aluminium (sand blasted) |
| Property | Value | Condition |
|---|---|---|
| Lap Shear Strength (metals) | 20–30 MPa | Aluminium, steel, brass, etc. |
| Lap Shear Strength (plastics/composites) | 5–20 MPa | ABS, CFRP, GRP, SMC, etc. |
| Peel Strength | 5 N/mm | Aluminium, sand blasted |
| Glass Transition Temperature (Tg) | 75°C | DMA, cured 16h at 40°C |
| Tensile Strength | 23 MPa | ISO 527, cured 16h/40°C |
| Tensile Modulus | 1 GPa | – |
| Elongation at Break | 12% | – |
| Flexural Strength | 37 MPa | ISO 178 |
| Flexural Modulus | 1.2 GPa | – |
| Flexural Elongation at Break | 11% | – |
| Heat/Weather Resistance | Retains >70–80% strength after 60–90 days | Tropical, heat ageing, immersion tests |
