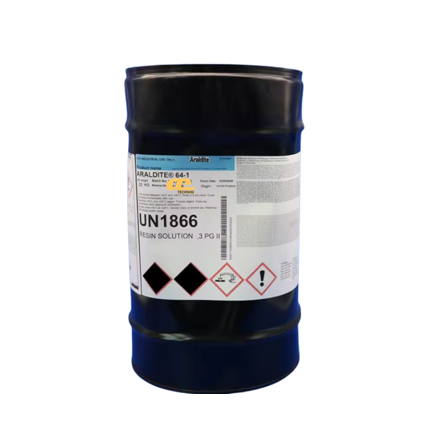

Item Name: Araldite® 64-1
Manufacturer: Huntsman Advanced Materials
Technologies: Vinyl-phenolic resin solution
Color: Dark brown/black when cured
Cure Type: Thermal cure at 150–230 °C after solvent drying
Package Size: Contact to Techniq VN for details.
Shelf Life: 18 months
1. Product Overview
Araldite® 64-1 is a vinyl-phenolic based friction lining adhesive and primer, formerly known as Redux 64-1. It is a solution of vinyl-modified phenolic resin, suitable for bonding most types of materials in brake and clutch applications. When cured, it appears dark brown/black. It can be used in combination with Araldite® 70 primer and has been widely applied in the automotive industry for many years.
2. Applications
Brake and clutch bonding adhesive.
Can serve as a primer when diluted to lower viscosity.
Suitable for use with friction lining materials (asbestos-based and non-asbestos).
Applied by brushing, spraying, or roller coating.
Compatible with thermal curing between 150–230 °C under pressure.
Recommended for use with Araldite® 70 and Araldite® 71 in multi-step bonding systems.
3. Typical Properties
| Property | Typical Data |
|---|---|
| Uncured (before mixing/curing) | |
| Appearance | Clear brown liquid |
| Viscosity at 25 °C | 1.5 – 3.0 Pa·s |
| Solids Content (160 °C) | 39 – 44% |
| Primary Solvents | Ethanol / Toluene |
| Specific Gravity | ~1.00 |
| Flash Point | <18 °C |
| Shelf Life (6–28 °C, unopened) | 18 months |
| Cured Properties (after curing) | |
| Shear test (friction lining, 20 °C) | >4.5 MPa |
| Shear test (friction lining, 200 °C) | 1.2 – 4.5 MPa (depending on material) |
| Steel/steel lap shear (with Araldite® 71, 23 °C) | >9 MPa |
| Steel/steel lap shear (with Araldite® 71, 200 °C) | >7 MPa |
| Cured appearance | Dark brown/black |
