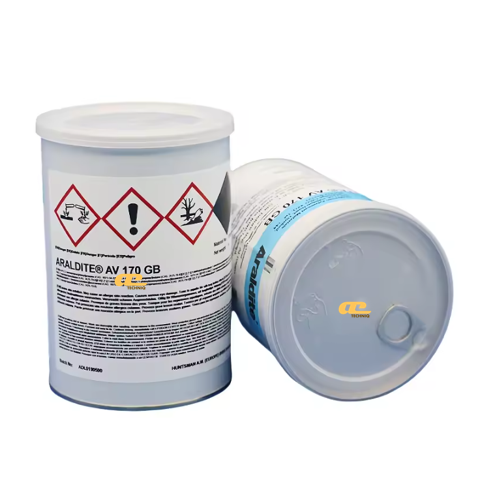

Item Name: Araldite® AV 170
Manufacturer: Huntsman Advanced Materials
Technologies: Epoxy adhesive (one-component, heat-curing thixotropic paste)
Color: Off-white
Cure Type: Heat cure (140–180 °C)
Package Size: Contact to Techniq VN for details.
Shelf Life: 24 months at 2–8 °C; 6 months at 15–25 °C after removal from cold storage
Araldite® AV 170 is a one-component, heat-curing epoxy adhesive supplied as a thixotropic paste. It is characterized by high strength, toughness, and gap-filling capability up to 3 mm. The adhesive cures between 140–180°C, resists heat up to 120°C, and demonstrates excellent peel strength and chemical resistance.
Bonding of metals, temperature-resistant plastics, and composite materials.
Structural bonding where durability under heat, humidity, and chemical exposure is required.
Ideal for gap-filling joints in industrial and automotive sectors.
| Property | Value |
|---|---|
| Colour (visual) | Off-white |
| Specific Gravity | 1.15 – 1.20 |
| Viscosity | Thixotropic paste |
| Flash Point | > 100°C |
| Temperature (°C) | Cure Time (min) |
|---|---|
| 140 | 50 |
| 160 | 20 |
| 180 | 10 |
| 220 | 5 |
| Cure Condition | Lap Shear Strength |
|---|---|
| 140°C, 60 min | 23 – 26 |
| 160°C, 60 min | 26 – 30 |
| 180°C, 60 min | 28 – 30 |
| 220°C, 60 min | 30 – 32 |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg, DMA) | 129°C |
| Tensile Strength (ISO 527) | 30 MPa |
| E-Modulus | 2 GPa |
| Elongation at Break | 1.4 % |
| Flexural Strength (ISO 178) | 46 MPa |
| Flexural Modulus | 2013 MPa |
| Shore Hardness (D scale) | 78 |
| Roller Peel Strength (ISO 4578) | 5.8 – 6.6 N/mm |
| Thermal Cycling (-30°C to 70°C, 100 cycles) | 26.6 MPa |
| Shear Modulus G’ | 1.27 GPa (-20°C) → 0.63 GPa (100°C) → 13.3 MPa (150–180°C) |
