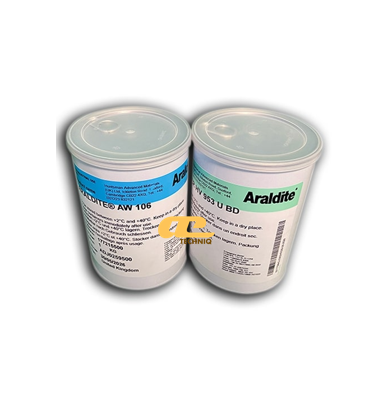

Item Name: Araldite AW 106 -Hardener HV 953 U
Manufacturer: Huntsman Advanced Materials
Technologies: Two-component epoxy
Color: Araldite AW 106 – Neutral, Hardener HV 953 U – Pale yellow, Mixed – Pale yellow
Cure Type: Room temperature curing
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
Araldite AW 106 -Hardener HV 953 U is a multipurpose, two-component epoxy adhesive with high strength and toughness, curing at room temperature. Key features:
Long working life (pot life ~100 min at 25 °C)
Low shrinkage during curing
Good resistance to dynamic loading
Multipurpose adhesive suitable for various materials
Bonding of metals, ceramics, glass, rubbers, rigid plastics, and composites
Suitable for craftsman use as well as industrial applications
Recommended where high toughness, durability, and fatigue resistance are required
Used in industries such as electronics, automotive, aerospace, construction, and general manufacturing
| Property | Araldite AW 106 | Hardener HV 953 U |
|---|---|---|
| Colour | Neutral | Pale yellow |
| Specific Gravity | ~1.15 | ~0.95 |
| Viscosity at 25 °C | 30–50 Pa·s | 20–35 Pa·s |
| Property | Value |
|---|---|
| Colour | Pale yellow |
| Specific Gravity | ~1.05 |
| Viscosity at 25 °C | 30–45 Pa·s |
| Mix Ratio (by weight) | 100 : 80 |
| Mix Ratio (by volume) | 100 : 100 |
| Pot Life (100 g at 25 °C) | ~100 min |
| Lap Shear Strength at 23 °C | >19 MPa |
| Shore Hardness | D74 |
| Glass Transition Temperature | ~45 °C |
| Tensile/Flexural Strength | Tensile not listed; Flexural: 60 MPa |
| Flexural Modulus | 1900 MPa |
| Thermal Conductivity | 0.22 W/m·K |
| Electrical Properties | Dielectric strength: 25–27 kV/mm; Volume resistivity: 7.1×10¹⁴ Ω·cm; Surface resistivity: 1.2×10¹⁶ Ω |
| Water Absorption | 0.8% (24h/23°C); 1.3% (30 min/100°C) |
| Temperature Resistance | Effective bonding up to ~100 °C (strength decreases beyond) |
