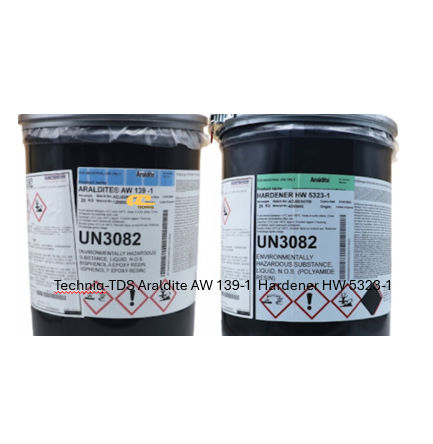

Item Name: Araldite® AW 139-1 / Hardener HW 5323-1
Manufacturer: Huntsman Advanced Materials
Technologies: Two-component epoxy paste adhesive
Color: Grey paste (mixed)
Cure Type: Room temperature curing with elevated temperature options
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
1. Product Overview
Araldite® AW 139-1 / Hardener HW 5323-1 is a two-component, room temperature curing epoxy paste adhesive. It is thixotropic, gap-filling (up to 5 mm), and non-sagging. The adhesive provides high strength, excellent environmental and chemical resistance, and sustained performance under elevated temperatures. When cured, it forms a grey paste with robust bonding properties for metals, composites, and plastics.
2. Applications
Bonding metals, electronic components, and GRP structures.
Suitable for high-temperature or chemically aggressive service environments.
Effective for metal-to-metal and plastic-to-plastic bonding.
Available in cartridge form (Araldite® 2014-2) for ready-to-use application with dispensing tools.
3. Typical Properties
| Property | Araldite® AW 139-1 | Hardener HW 5323-1 | Mixed Adhesive |
|---|---|---|---|
| Colour (visual) | Beige paste | Grey paste | Grey paste |
| Specific Gravity | ~1.6 | ~1.5 | ~1.6 |
| Viscosity at 25 °C (Pa·s) | 50 – 80 (thixotropic) | Thixotropic | Thixotropic |
| Mix Ratio (parts by weight/volume) | 100 | 50 | – |
| Pot Life (100 g at 25 °C) | – | – | ~110 min |
| Lap Shear Strength at 25 °C | – | – | >14 MPa |
Cured Properties (typical values):
| Property / Test (Cure: 16 h at 40 °C, tested at 23 °C) | Typical Value |
|---|---|
| Lap shear strength – Aluminium (ISO 4587) | ~20–25 MPa |
| Lap shear strength – Steel | ~18–22 MPa |
| Lap shear strength – Stainless steel | ~15–20 MPa |
| Lap shear strength – Copper/Brass | ~12–18 MPa |
| Lap shear strength – Plastics (ABS, PVC, PMMA, etc.) | Substrate failure (strong bond) |
| Glass Transition Temperature (Tg) | ~69 °C (DMA), ~85 °C (DSC) |
| Flexural Strength (ISO 178) | 60 MPa |
| Flexural Modulus | 3500 MPa |
| Tensile Strength (ISO 527) | 30 MPa |
| Tensile Modulus | 3100 MPa |
| Elongation at break | 0.9 % |
| Dielectric Strength | 25 kV/mm |
| Surface Resistivity | 4.6 × 10^16 Ω |
| Volume Resistivity | 2.7 × 10^15 Ω·cm |
| Dielectric Constant (60 Hz) | 4.0 |
| Loss Tangent (60 Hz) | 1.3 % |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
