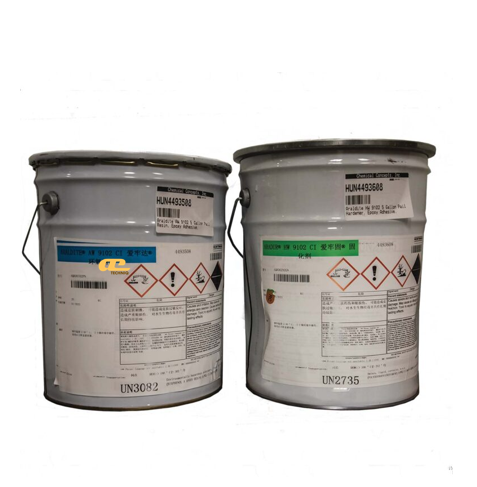

Item Name: Araldite® AW 9102 CI / HW 9102 CI
Manufacturer: Huntsman Advanced Materials
Technologies: Two-component epoxy adhesive system
Color: Pale yellow (resin, hardener, and mixed system)
Cure Type: Room temperature curing (performance enhanced by elevated temperature post-curing)
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
Araldite® AW 9102 CI (resin) and HW 9102 CI (hardener) form a two-component, room-temperature curing structural adhesive with high strength, toughness, and versatility. It bonds a wide variety of substrates including metals, aluminium honeycomb, ceramics, sandstone, fireproof panels, and composites. The system exhibits long work life, low shrinkage, good heat resistance, and complies with EN45545-2:2013 R1/HL3 fire safety standard.
Bonding of aluminium honeycomb structures for curtain wall, floor, roof, and barrier wall panels in transportation and construction.
Adhesion of metals, ceramics, sandstone, and fireproof panels.
Suitable for structural bonding in rail, aerospace, building, and industrial sectors.
| Property | AW 9102 CI | HW 9102 CI | Mixed System |
|---|---|---|---|
| Appearance | Pale | Pale Yellow | Pale Yellow |
| Density (g/cm³) | ~1.41 | ~1.20 | ~1.33 |
| Viscosity @ 25°C (cP) | 10,000–17,000 | 8,000–16,000 | 8,000–20,000 |
| Mix ratio (by weight) | 100 | 40 | – |
| Mix ratio (by volume) | 100 | 47 | – |
| Pot life @ 25°C (100 g) | – | – | ~80 min |
| Property | Value | Test Method |
|---|---|---|
| Lap shear strength (Aluminium) | ~2900 psi (20 MPa) | ISO 4587 |
| Lap shear strength (Steel) | ~3625 psi (25 MPa) | ISO 4587 |
| Roll peel test | 45 N·mm/mm | ASTM D1781-98 |
| Glass transition temp. (Tg) | ~125 °F (~52 °C) | DSC |
| Plane tensile strength | ~507 psi | GB/T 1452 |
| T-peel strength | 3.5 N/mm | ISO 11339 |
