• Item Name: CLARITY PHL 4170 C ZP
• Manufacturer: H.B. Fuller
• Technologies: Pressure-sensitive hot melt, synthetic rubber-based
• Color: Light Yellow/Translucent
• Cure Type: Hot melt, pressure-sensitive
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 1 year

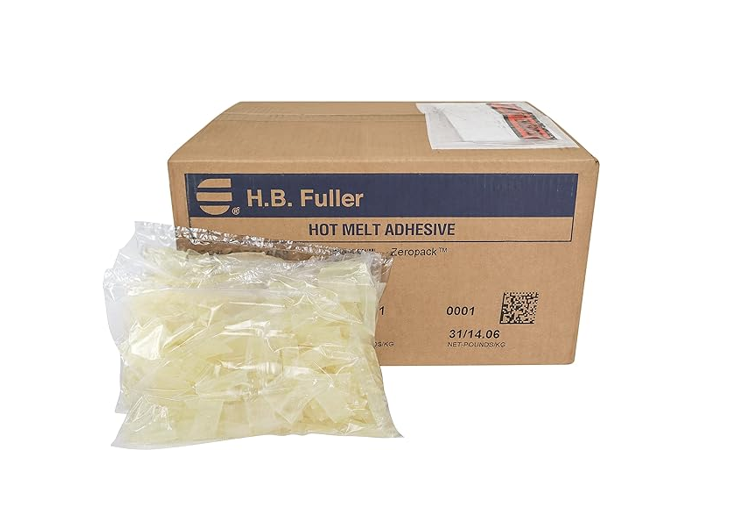

Clarity PHL 4170 C ZP is a light-colored, aggressive pressure-sensitive hot melt adhesive designed for hard-to-bond substrates and demanding applications such as labeling and envelopes. It provides clean machining, minimal char, smoke, and adhesive odor, forming a virtually invisible glue line on PET, plastics, and glass containers.
Key Highlights:
Type: Pressure-Sensitive Hot Melt Adhesive
Raw Material Base: Synthetic Rubber
Appearance: Light Yellow/Translucent
Extremely clean machining
Bonds hard-to-bond substrates
Reduces maintenance costs and improves operator environment
Shelf Life: 1 year unopened
Labeling on magazine-fed or roll-fed label stocks
Envelopes
Other hard-to-bond pressure-sensitive applications
General Instructions:
Apply within the recommended temperature range (135–160°C, suggested 150°C)
Refer to MSDS for safety advice
| Property | Specification |
|---|---|
| Raw Material Base | Synthetic Rubber |
| Colour | Light Yellow/Translucent |
| Ring & Ball Softening Point | 73–74°C |
| Viscosity @ 160°C (Brookfield) | ~475 cP |
| Viscosity @ 150°C (Brookfield) | 600–800 cP |
| Viscosity @ 135°C (Brookfield) | ~1200 cP |
| Speed of Set | Pressure-Sensitive |
| Application Temperature Range | 135–160°C |
| Suggested Application Temperature | 150°C |
| Shelf Life | 1 year unopened |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
