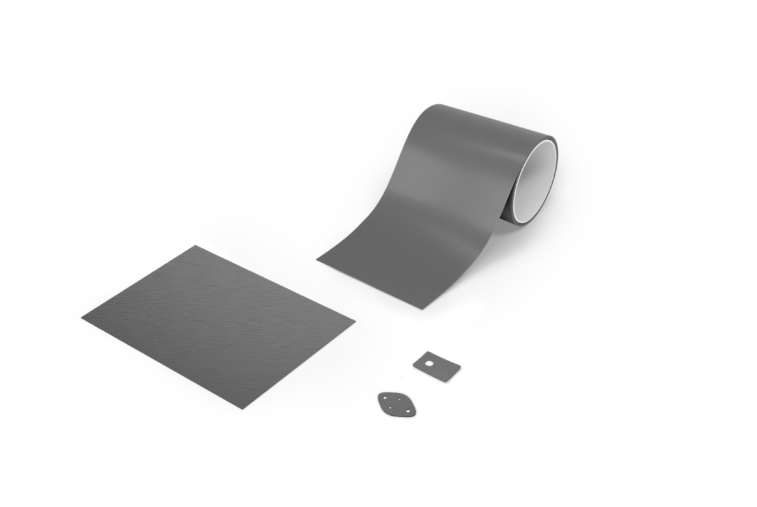

BERGQUIST BOND PLY TBP 800 is a thermally conductive, fiberglass-reinforced, pressure-sensitive adhesive tape designed for thermal management applications. It provides high bond strength, electrical isolation, and thermal transfer while eliminating the need for mechanical fasteners or heat-cure adhesives.
Key Features & Benefits:
| Property | Test Method | Value |
|---|---|---|
| Elongation (% at 45° to warp and fill) | ASTM D412 | 70 |
| Coefficient of Thermal Expansion (ppm/°C) | ASTM D3386 | 600 |
| Flammability Rating | UL 94 | V-0 |
| Tensile Strength (MPa) | ASTM D412 | 10 (1,500 psi) |
| Property | Test Method | Value |
|---|---|---|
| Lap Shear Strength @ 25°C (MPa) | ASTM D1002 | 1.0 (150 psi) |
| Property | Test Method | Value |
|---|---|---|
| Dielectric Breakdown Voltage @ 0.005″ (Vac) | ASTM D149 | 4,000 |
| Dielectric Breakdown Voltage @ 0.008″ (Vac) | ASTM D149 | 6,000 |
| Dielectric Constant @ 1,000 Hz | ASTM D150 | 4.0 |
| Volume Resistivity (ohm-meter) | ASTM D257 | 1×10¹¹ |
| Property | Test Method | Value |
|---|---|---|
| Thermal Conductivity (W/m-K) | ASTM D5470 | 0.8 |
| Pressure (psi) | @ 0.005″ | @ 0.008″ |
|---|---|---|
| 10 | 5.0 | 6.2 |
| 25 | 5.0 | 6.0 |
| 50 | 4.8 | 5.6 |
| 100 | 4.3 | 5.3 |
| 200 | 4.2 | 5.2 |
| Pressure (psi) | @ 0.005″ | @ 0.008″ |
|---|---|---|
| 10 | 0.63 | 0.78 |
| 25 | 0.62 | 0.74 |
| 50 | 0.60 | 0.72 |
| 100 | 0.58 | 0.71 |
| 200 | 0.57 | 0.71 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
