BERGQUIST BOND PLY TBP 800 – Adhesive Tape – Thermal Management & Electronics

  • Item Name: BERGQUIST BOND PLY TBP 800
  • Manufacturer: Henkel
  • Technologies: Acrylic-based, Fiberglass Reinforced, Pressure Sensitive Adhesive Tape
  • Color: Gray
  • Cure Type: Pressure sensitive adhesive (no curing required)
  • Package Size: Contact to Techniq VN for details.
  • Shelf Life: Contact to Techniq VN for details.

1. Product Overview

BERGQUIST BOND PLY TBP 800 is a fiberglass-reinforced, thermally conductive, electrically isolating, double-sided acrylic adhesive tape. It provides high bond strength to most epoxies and metals while eliminating the need for mechanical fasteners or high-temperature curing.

2. Applications

  • Mounting LED assemblies to troffer housing or heat sinks
  • Attaching heat spreaders onto power converter or motor control PCBs
  • Mounting heat sinks onto BGA graphic processors or drive processors

3. Typical Properties

Property Value
Technology Acrylic
Appearance Gray
Reinforcement Carrier Fiberglass
Total Thickness 0.005″ (0.127mm) / 0.008″ (0.203mm)
Operating Temperature Range -40 to 125°C
Thermal Conductivity 0.8 W/m-K
Dielectric Breakdown Voltage 4,000V (0.005″) / 6,000V (0.008″)
Volume Resistivity 1×10¹¹ ohm-meter
Flammability Rating UL 94 V-0
Lap Shear Strength 1.0 MPa (150 psi)

Features & Benefits

  • High bond strength to most epoxies and metals
  • Eliminates the need for screws, clips, or heat-cure adhesives
  • Cost-effective thermal management solution
  • Reliable adhesion with ambient temperature processing

Configurations Available

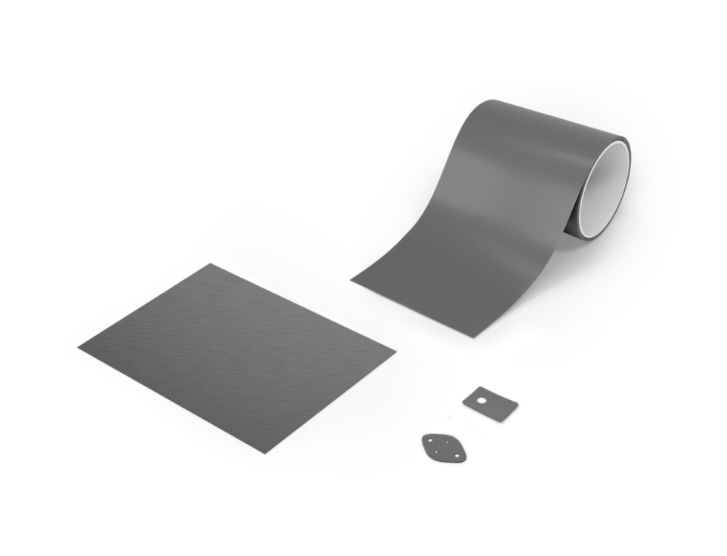

  • Supplied in sheets, rolls, or die-cut parts
