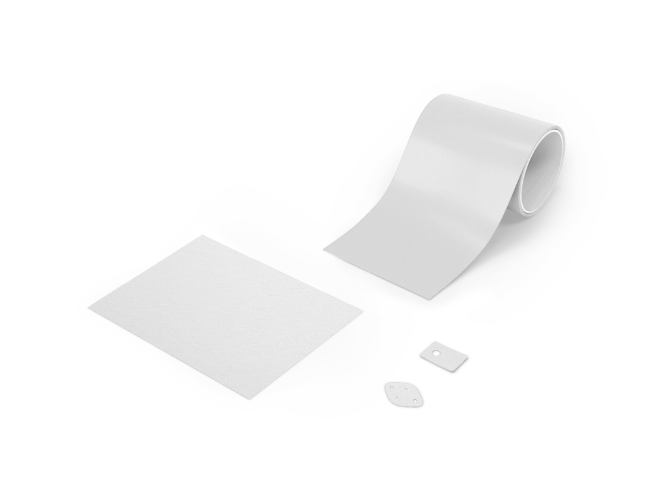

BERGQUIST BOND PLY TBP 850 (also known as BERGQUIST BOND-PLY 100) is a thermally conductive, fiberglass-reinforced, pressure-sensitive adhesive tape. It provides high bond strength and is designed to efficiently transfer heat while offering easy application due to its double-sided adhesive nature.
✔ Key Features & Benefits:
✅ Mounting heat sinks onto BGA graphic processors and drive processors
✅ Mounting heat spreaders onto power converter PCBs or motor control PCBs
| Property | Test Method | Value |
|---|---|---|
| Total Thickness (mm) | ASTM D374 | 0.127, 0.203, 0.279 |
| Temperature Coefficient of Resistance (°C) | – | 200 |
| Elongation (%) | ASTM D412 | 70 |
| Coefficient of Thermal Expansion (ppm) | ASTM D3386 | 325 |
| Glass Transition Temperature (°C) | ASTM D1356 | -30 |
| Flammability Rating | UL 94 | V-0 |
| Tensile Strength (MPa) | ASTM D412 | 6 (900 psi) |
| Property | Test Method | Value |
|---|---|---|
| Lap Shear Strength @ 25°C (MPa) | ASTM D1002 | 0.7 (100 psi) |
| After 5 hours @ 100°C (MPa) | ASTM D1002 | 1.4 (200 psi) |
| After 2 minutes @ 200°C (MPa) | ASTM D1002 | 1.4 (200 psi) |
| Static Dead Weight Shear Strength (°C) | PSTC#7 | 150 |
| Property | Test Method | Value |
|---|---|---|
| Dielectric Breakdown Voltage @ 0.005″ (Vac) | ASTM D149 | 3,000 |
| Dielectric Breakdown Voltage @ 0.008″ (Vac) | ASTM D149 | 6,000 |
| Dielectric Breakdown Voltage @ 0.011″ (Vac) | ASTM D149 | 8,500 |
| Property | Test Method | Value |
|---|---|---|
| Thermal Conductivity (W/m-K) | ASTM D5470 | 0.8 |
| Thickness | Pressure (psi) | TO-220 Thermal Performance (°C/W) | Thermal Impedance (°C-in²/W) |
|---|---|---|---|
| 0.005″ | 10 | 5.17 | 0.56 |
| 25 | 4.87 | 0.54 | |
| 50 | 4.49 | 0.52 | |
| 100 | 4.18 | 0.50 | |
| 200 | 4.10 | 0.50 | |
| 0.008″ | 10 | 5.4 | 0.82 |
| 25 | 5.35 | 0.80 | |
| 50 | 5.28 | 0.78 | |
| 100 | 5.22 | 0.77 | |
| 200 | 5.20 | 0.75 | |
| 0.011″ | 10 | 6.59 | 1.03 |
| 25 | 6.51 | 1.02 | |
| 50 | 6.51 | 1.01 | |
| 100 | 6.50 | 1.00 | |
| 200 | 6.40 | 0.99 |
