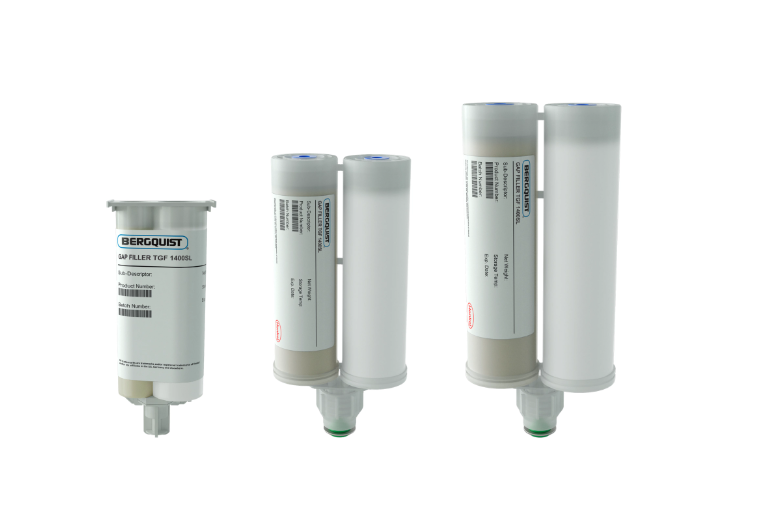

BERGQUIST GAP FILLER TGF 1400SL is a two-part, thermally conductive, silicone-based liquid gap filler with extremely low viscosity. It provides excellent thermal transfer, self-leveling properties, and a soft, vibration-dampening cured form. This material is designed for use in applications requiring thermal interface materials (TIM) with minimal stress to components.
Key Features:
| Property | Value | Test Standard |
|---|---|---|
| Mixed Viscosity | 5,000 mPa·s (cP) | ASTM D2196 |
| Density | 2.5 g/cc | ASTM D792 |
| Working Time (@25°C) | 120 minutes | – |
| Shelf Life (@25°C) | 180 days | – |
| Cure Condition | Time |
|---|---|
| Room Temperature Cure | 24 hours @ 25°C |
| Heat Cure | 30 minutes @ 100°C |
| Property | Value | Test Standard |
|---|---|---|
| Hardness (Shore 00) | 40 | ASTM D2240 |
| Heat Capacity | 0.9 J/g-K | ASTM E1269 |
| Flammability Rating | V-0 | UL 94 |
| Siloxane Content (ΣD4-D10) | 40 ppm | – |
| Property | Value | Test Standard |
|---|---|---|
| Dielectric Strength | 250 V/mil | ASTM D149 |
| Dielectric Constant (@1,000 Hz) | 6.0 | ASTM D150 |
| Volume Resistivity | 1×10¹¹ ohm-meter | ASTM D257 |
| Property | Value | Test Standard |
|---|---|---|
| Thermal Conductivity | 1.4 W/(m-K) | ASTM D5470 |
