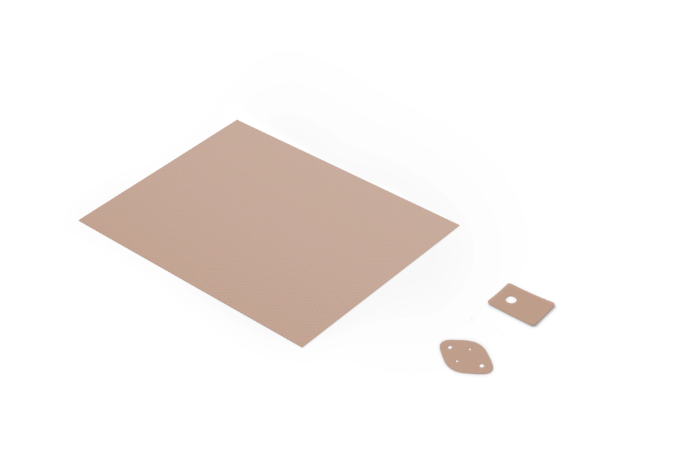

BERGQUIST GAP PAD TGP 2700 (Known as BERGQUIST GAP PAD 2500)

Item Name: BERGQUIST GAP PAD TGP 2700 (Known as BERGQUIST GAP PAD 2500)
Manufacturer: Henkel
Product Category: Thermal interface material (TIM)
Technologies: Silicone-based, un-reinforced gap filling material
Applications: Heat-generating components to heat sinks, graphics chips, processors, storage drives, communication hardware
Color: Light brown
Cure Type: Not applicable (pre-formed thermal pad)
Package Size: Contact Techniq VN for details.
Shelf Life: 12 months

1. Product Overview

BERGQUIST GAP PAD TGP 2700 is a thermally conductive, electrically insulating, un-reinforced gap filling material designed for thermal management applications. It provides high thermal performance and cost-effectiveness, with medium compliancy and conformability.

Technology: Silicone-based
Appearance: Light brown
Thickness: 0.508 to 3.175 mm (ASTM D374)
Operating Temperature Range: -60 to 200°C
Thermal Conductivity: 2.7 W/m-K
Features: High thermal performance, good wet-out, natural tack on both sides, fiberglass reinforcement for durability

2. Applications

Multiple heat-generating components to a common heat sink
Graphics chips, processors to heat sinks
Mass storage drives
Wireline/wireless communications hardware

3. Typical Properties

Physical Properties

Property	Value	Test Method
Hardness, Shore 00	80	ASTM D2240
Heat Capacity (J/g-K)	1.0	ASTM E1269
Density (g/cc)	3.1	ASTM D792
Flammability	UL 94 V-0	UL 94
Young’s Modulus (kPa)	779 (113 psi)	ASTM D575

Electrical Properties

Property	Value	Test Method
Dielectric Breakdown Voltage	>6,000 VAC	ASTM D149
Dielectric Constant (1,000Hz)	6.8	ASTM D150
Volume Resistivity (ohm-m)	1×10¹¹	ASTM D257

Thermal Properties

Property	Value	Test Method
Thermal Conductivity (W/m-K)	2.7	ASTM D5470
