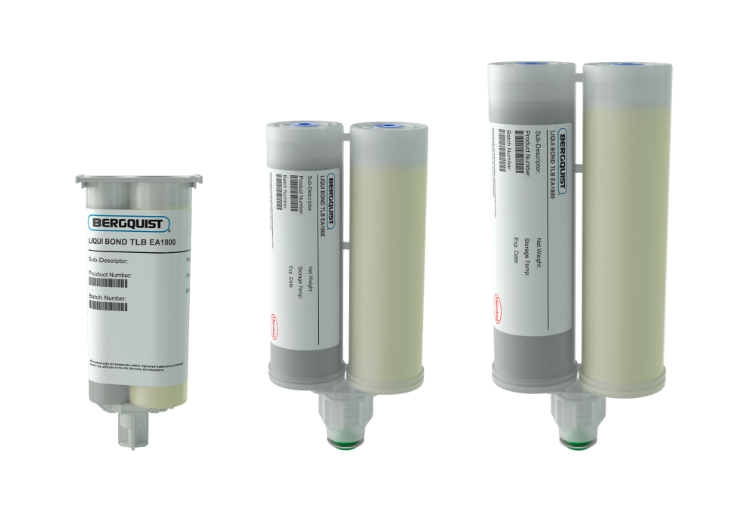

Item Name: BERGQUIST® LIQUI BOND TLB EA1800 (Known as BERGQUIST LIQUI-BOND EA 1805)
Manufacturer: Henkel
Technologies: Two-part, thermally conductive epoxy adhesive
Color: Part A – Gray, Part B – Pale yellow
Cure Type: Room temperature cure (accelerated with heat)
Package Size: Contact to Techniq VN for details.
Shelf Life: 6 months
BERGQUIST® LIQUI-BOND TLB EA1800 is a thermally conductive, two-part epoxy adhesive designed for thermal management applications. Supplied in a 1:1 volume mix ratio, it cures at room temperature without requiring refrigeration and can be accelerated with heat. With a thermal conductivity of 1.8 W/m·K and strong adhesion, the material eliminates the need for mechanical fasteners while maintaining performance in harsh environments. Its thixotropic nature ensures easy dispensing, thin bond lines, and minimal stress on fragile components.
LED lighting modules
Power supplies
Discrete component-to-heat spreader bonding
Automotive lighting assemblies
White goods requiring thermal management
| Property | Still Not Mixed (Uncured) | After Mixed / Cured |
|---|---|---|
| Appearance | Part A: Gray / Part B: Pale yellow | – |
| Mix Ratio | 1:1 by volume | – |
| Viscosity (ASTM D2196) | Part A: 60 Pa·s / Part B: 62 Pa·s | – |
| Density (ASTM D792) | 2.7 g/cc | – |
| Shelf Life | 6 months @ 25 °C | – |
| Cure Schedule | 10 h @ 25 °C or 10 min @ 125 °C | – |
| Hardness (ASTM D2240) | – | 90 Shore D |
| Dielectric Strength (ASTM D149) | – | 10,000 V/mm |
| Dielectric Constant (ASTM D150 @1kHz) | – | 7.5 |
| Volume Resistivity (ASTM D257) | – | 1×10¹⁴ Ω·m |
| Thermal Conductivity (ASTM D5470) | – | 1.8 W/m·K |
| Shear Strength (ASTM D1002, Al–Al, 25 °C) | – | 3.1 MPa (450 psi) |
| Operating Temperature | – | -40 to 125 °C |
| UL Flammability | – | UL 94 V-0 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
