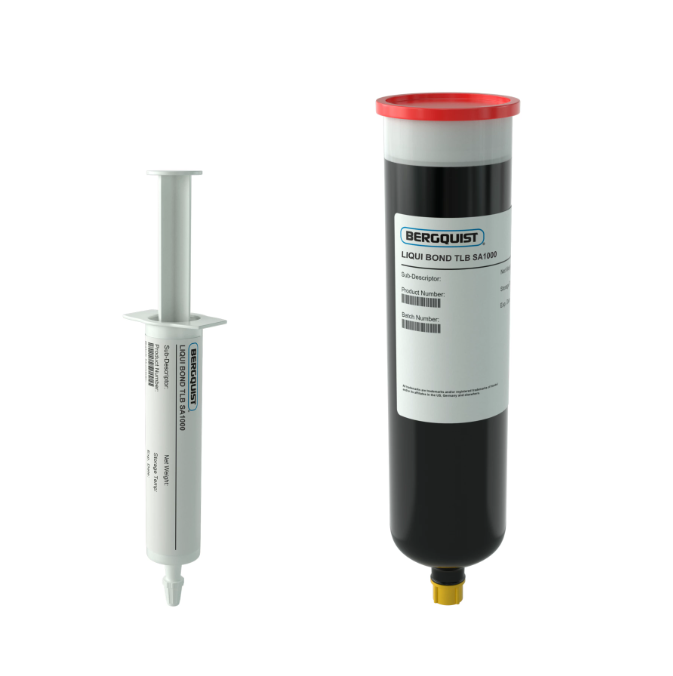

Item Name: BERGQUIST LIQUI BOND TLB SA1000
Manufacturer: Henkel
Technologies: Silicone, thermally conductive, one-part liquid adhesive
Color: Black
Cure Type: Heat cure
Package Size: Contact to Techniq VN for details.
Shelf Life: 6 months
BERGQUIST LIQUI-BOND TLB SA1000 is a one-part, thermally conductive liquid silicone adhesive designed for thermal management. It combines high thermal performance with excellent chemical and mechanical stability, even under extreme environmental conditions. The adhesive eliminates the need for mechanical fasteners, enables very thin bond lines, and offers mild elasticity to relieve stresses caused by thermal cycling. It cures with heat, contains no cure by-products, and requires refrigerated storage at 10 °C.
Bonding PCBA to housing for improved heat transfer.
Attaching discrete components to heat spreaders.
Suitable for environments requiring reliable thermal conductivity, stability, and flame resistance (UL 94 V-0).
| Property | Still Not Mixed (Uncured) | After Mixed / Cured |
|---|---|---|
| Viscosity (25 °C) | 125,000 mPa·s | – |
| Density | 2.4 g/cc | – |
| Shelf Life | 6 months @ 10 °C | – |
| Pot Life | 10 h @ 25 °C | – |
| Cure Schedule | 20 min @ 125 °C or 10 min @ 150 °C | – |
| Hardness (Shore A) | – | 75 |
| Dielectric Strength | – | 10,000 V/mm |
| Dielectric Constant (1 kHz) | – | 5.5 |
| Volume Resistivity | – | 1×10¹⁰ Ω·m |
| Thermal Conductivity | – | 1.0 W/m·K |
| Shear Strength | – | 1.4 MPa (200 psi) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
