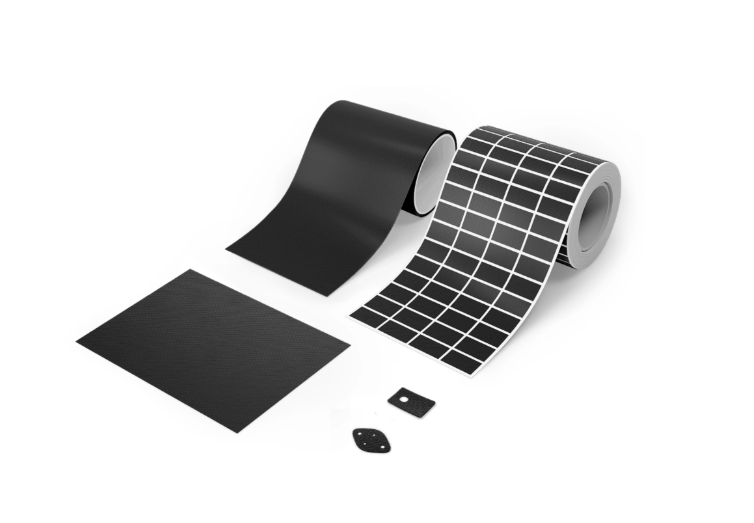

Exceptional Performance, Thermally Conductive Elastomeric Material
| Property | Test Method | Value |
|---|---|---|
| Shore Hardness | ASTM D2240 | 80 (Shore 00) |
| Elongation (45º to warp & fill) | ASTM D412 | 20% |
| Tensile Strength | ASTM D412 | 9 MPa |
| Flammability Rating | UL 94 | V-0 |
| Property | Test Method | Value |
|---|---|---|
| Dielectric Breakdown Voltage | ASTM D149 | 6,000 Vac |
| Dielectric Constant (@ 1,000 Hz) | ASTM D150 | 8.0 |
| Volume Resistivity | ASTM D257 | 1×10⁹ ohm-meter |
| Property | Test Method | Value |
|---|---|---|
| Thermal Conductivity | ASTM D5470 | 1.8 W/(m-K) |
| TO-220 Thermal Performance (ºC/W) | – | |
| @ 10 psi | – | 2.82 |
| @ 25 psi | – | 2.64 |
| @ 50 psi | – | 2.41 |
| @ 100 psi | – | 2.13 |
| @ 200 psi | – | 1.9 |
| Thermal Impedance (ºC-in²/W) | ASTM D5470 | |
| @ 10 psi | – | 0.71 |
| @ 25 psi | – | 0.62 |
| @ 50 psi | – | 0.53 |
| @ 100 psi | – | 0.47 |
| @ 200 psi | – | 0.41 |
