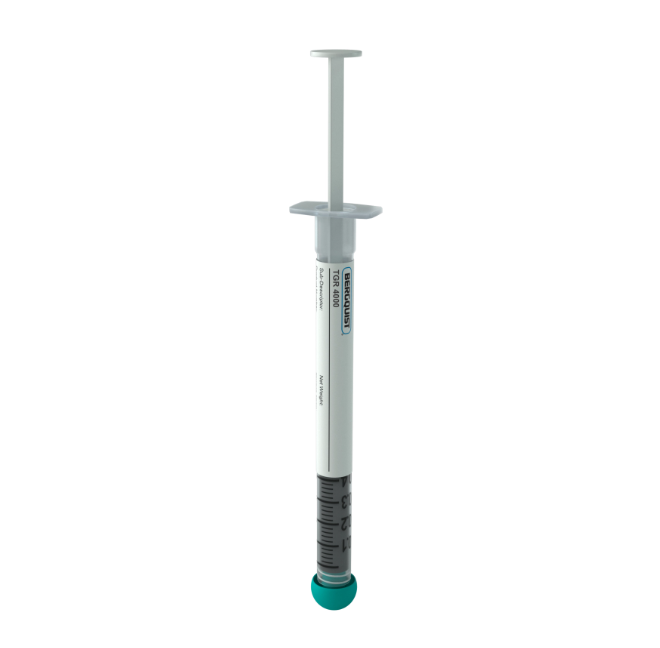

– Item Name: BERGQUIST TGR 4000 (Known as BERGQUIST TIC 4000)
– Manufacturer: Henkel
– Product Category: Thermal Interface Material (TIM), Thermally Conductive Grease
– Technologies: Silicone-based, Thermally Conductive Grease
– Applications: High-performance computer processors, high watt density applications requiring low thermal resistance
– Color: Gray
– Cure Type: No cure required, applies as a grease
– Package Size: Contact Techniq VN for details.
– Shelf Life: Contact Techniq VN for details.
BERGQUIST® TGR 4000 is a high-performance thermal interface compound designed for use as a thermal management solution between copper-based heat sinks and heat-generating components such as computer processors. It has a thermal conductivity of 4.0 W/m-K and provides excellent thermal performance with low thermal resistance. This thermally conductive compound is designed for high watt-density applications, ensuring efficient heat dissipation.
| Property | Value | Test Method |
|---|---|---|
| Density | 4.0 g/cc | ASTM D792 |
| Property | Value | Test Method |
|---|---|---|
| Electrical Resistivity | N/A (electrically non-conductive resin with conductive filler) | ASTM D257 |
| Property | Value | Test Method |
|---|---|---|
| Thermal Conductivity | 4.0 W/m·K | ASTM D5470 |
| Pressure (psi) | Thermal Resistance (ºC/W) |
|---|---|
| 10 psi | 0.21 |
| 25 psi | 0.20 |
| 50 psi | 0.19 |
| 100 psi | 0.19 |
| 200 psi | 0.18 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
