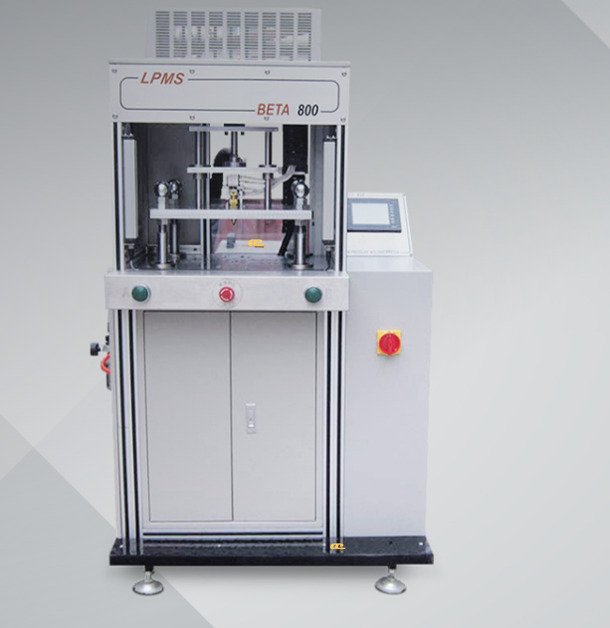

Item Numbers: BETA 800 (vertical injection, single-station, integrated 7L melt tank, optional 3L round)
Manufacturer: LPMS USA
Application: Low pressure molding for PCB and electronics encapsulation, waterproofing, strain relief, vibration and chemical protection
Dispensing Control: Integrated 7L melt tank, optional 3L, 3 temperature zones, 7.5” touchscreen interface
Size & Weight: 800 × 1050 × 1700 mm, 772 lbs, max mold size 305 × 250 × 150 mm
Power & Certification: 220 VAC, 1 Phase, 50/60 Hz, 25A, air 90–110 PSI, 4 CFM, clamping 1.2T, safety: light curtains, E-stop, dual-hand interlocks, LOTO
More information & technologies: Contact to Techniq VN for details. (Email: info@techniq.vn & Tel: +84 88 990 19 29)
1. Product Overview
The BETA 800 is a compact, mobile low pressure molding machine engineered with a vertical-injection system and an integrated melt tank. Featuring a user-friendly 7.5-inch touchscreen interface, this single-station equipment is designed for precision encapsulation and medium-scale production. Its ergonomic structure ensures operational efficiency, while robust safety systems, including light curtains and interlocks, safeguard the operator.
2. Applications
The BETA 800 is ideally suited for encapsulating and waterproofing sensitive electronic components such as PCBs, connectors, switches, and sensors. By employing eco-friendly hot-melt adhesives, it provides strain relief, chemical resistance, vibration protection, and IP-rated waterproofing. It serves as a highly efficient alternative to traditional potting, sealing, and conformal coating processes in electronics, automotive, medical, and industrial manufacturing.
3. Typical Properties – Specifications
| Parameter | Specification |
|---|---|
| Machine Dimensions | 800 × 1050 × 1700 mm · 31.49 × 41.33 × 66.92 in · 772 lbs |
| Electricity | 220 VAC · 1 Phase · 50/60 Hz · 25A |
| Air Input | 90 – 110 PSI |
| Air Volume | 4 CFM |
| Clamping Method | Pneumatic |
| Clamping Force | 1.2 Tons |
| Clamping Stroke | 125 mm Standard · 150 mm Optional |
| Maximum Mold Size | 305 × 250 × 150 mm |
| Melt Tank | One Integrated 7L Square Standard · 3L Round Optional |
| Temperature Control Zones | 3 |
| Safety Features | Light Curtains · Emergency Stop · Two-Hand Tie Door Interlocks · Lockout Tagout |
