• Item Number: BVX-250 (variants: BVX-250-KIT, FP-BVX250, FM-BVX250, FG-BVX250, FN-BVX, BVX-NOZR, BVX-NOZC, BVX-NOZ1, BVX-ARM-K1, BVX-ARM, BVX-ARML, BVX-CH01, BVX-CH02, AC-BVX250-DUCT, AC-BVX250-OMNI, RPS-1, BVX-TB01)
• Manufacturer: Metcal (OK International)
• Application: Portable dual-station extraction of soldering fumes, vapors, dust, and workplace contaminants
• Filtration: HEPA 13, 99.97% efficiency @ 0.3 microns; optional deep-bed carbon gas filter
• Performance: Airflow 297 m³/h; 2 × 75 m³/h stations; static pressure 1743 Pa; noise ~50 dBA
• Size & Weight: 268 × 400 × 320 mm; 12 lbs (5.5 kg)
• Power & Certifications: 100–240 VAC, 150W, 50/60 Hz; UL, CSA, CE, TUV, UKCA, KC, PSE, NOM, RoHS/REACH
1. Product Overview

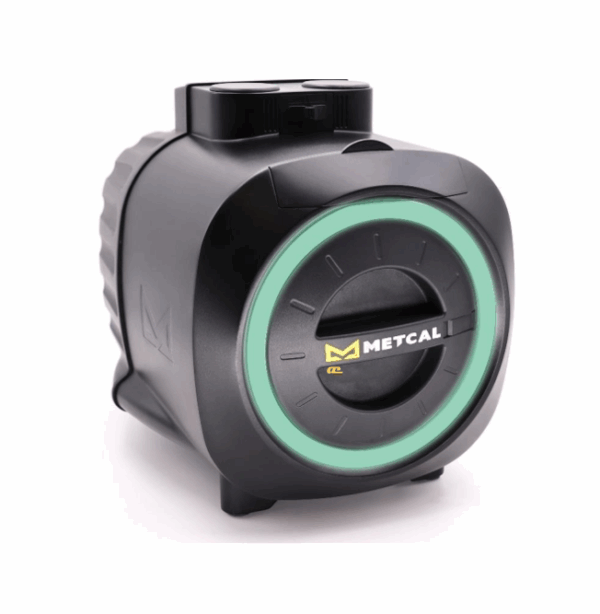

The BVX-250 Fume Extraction System by Metcal is a compact and portable two-station unit designed for effective removal of fumes, smoke, dust, and vapors in the workplace. It features powerful airflow with three adjustable modes, a “Soft-Start” on/off switch, ESD-safe housing, and a color LED status ring. The system allows filter replacement without disconnecting hoses and includes a removable 360° rotating air diverter for operator comfort. With HEPA 13 filtration efficiency at 99.97% and an optional deep-bed gas filter, it ensures high safety standards, meeting UL, CSA, CE, and other international certifications. Its lightweight design enables quiet operation and easy integration under most workbenches.
2. Applications
The BVX-250 is ideally suited for electronics manufacturing, soldering environments, laboratories, and industrial settings requiring localized fume extraction. It effectively protects operators from hazardous airborne contaminants while offering seamless communication with Metcal CV and GT soldering systems for filter change notifications.
3. Typical Properties – Specifications
Maximum airflow: 297 m³/h (175 cfm)
Dual flow rate: 2 × 75 m³/h (45 cfm)
Static pressure: 1743 Pa (7” WC)
Noise level: ~50 dBA (medium setting)
Voltage: 100–240 VAC, 1 phase; Frequency: 50/60 Hz
Power consumption: 150 W
Dimensions: 268 × 400 × 320 mm (10.5” × 16” × 13”)
Weight: 5.5 kg (12 lbs)
Compliance: UL, CSA, CE, TUV
