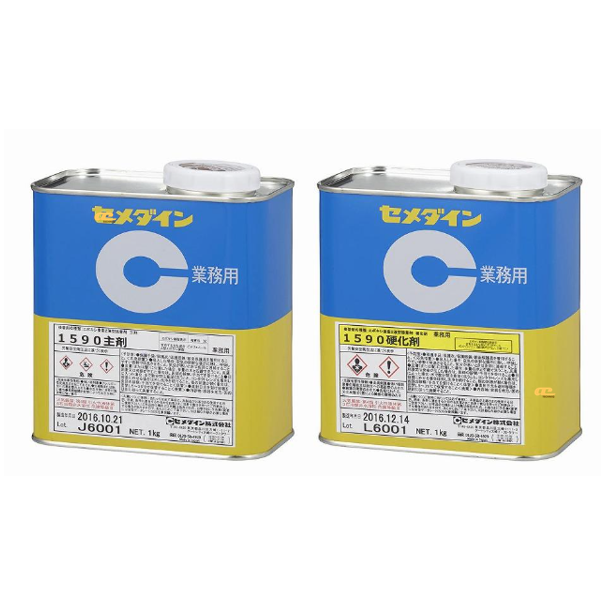

• Item Name: CEMEDINE 1590
• Manufacturer: CEMEDINE CO., LTD.
• Technologies: Two-component epoxy resin adhesive (solventless, reactive)
• Color: Light yellow (base resin), Light brown (hardener)
• Cure Type: Room temperature curing, 1:1 mixing ratio
• Package Size: Standard sets (contact for 500 g, 1 kg, 3 kg, 15 kg availability)
• Shelf Life: Contact to Techniq VN for details.
CEMEDINE 1590 is a high-performance two-component epoxy adhesive designed for strong bonding of metals, plastics, and other engineering materials. It features excellent heat and chemical resistance, minimal shrinkage, and superb durability, making it suitable for demanding industrial and precision applications. This solventless adhesive produces no gas during curing and offers superb insulation properties.
Adhesion in vehicles, vessels, and aircraft components.
Bonding and sealing of electronic and electrical parts.
Assembly of composite members used in construction work.
Precision equipment assembly and bonding of sporting equipment.
Applications requiring high heat, chemical resistance, and long-term durability.
| Property | CEMEDINE 1590 |
|---|---|
| Type | Two-part epoxy adhesive curing at room temperature |
| Base | Epoxy resin / Polyamide |
| Appearance | Light yellow transparent (base), Light brown transparent (hardener) |
| Viscosity (Pa·s/23°C) | 20 / 55 |
| Density (g/cm³) | 1.16 / 0.97 |
| Mixing ratio | 1:1 |
| Standard curing | 23°C × 24 hours |
| Pot life | Within 1 hour |
| Time for effective curing | 6 hours |
| Tensile shear strength (MPa) | 15.7 |
| T-peel strength (N/mm) | 0.4 |
| Hardness (Shore D) | 82 |
| Glass transition point (°C) | 54 |
| Coefficient of water absorption (%) | 0.8 |
| Coefficient of linear expansion | 7.1 × 10⁻⁵ |
| Volume resistivity (Ω·cm) | 7.1 × 10¹⁵ |
| Capacity | 500 g, 1 kg, 3 kg, 15 kg sets |
