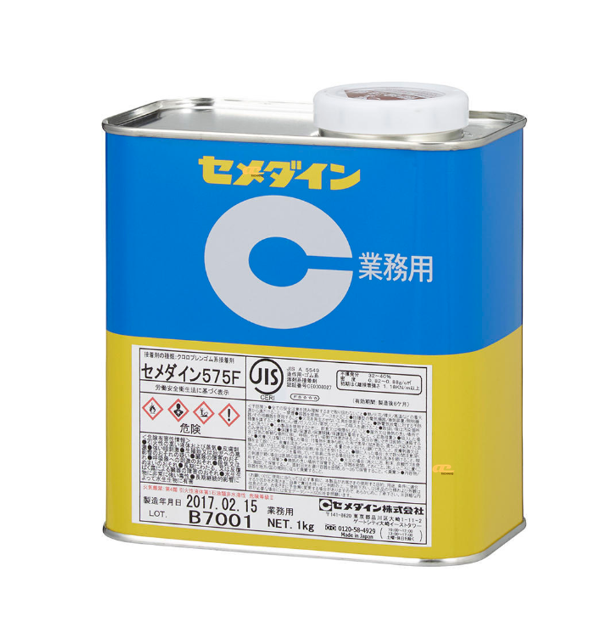

Item Name: CEMEDINE 575F
Manufacturer: CEMEDINE Co., Ltd.
Technologies: Chloroprene rubber solvent-based adhesive
Color: Light yellow
Cure Type: Solvent evaporation / heat reactivation
Package Size: 180mL, 3kg, 15kg
Shelf Life: Contact to Techniq VN for details.
CEMEDINE 575F is a solvent-based chloroprene rubber adhesive designed for versatile bonding applications. It provides excellent initial adhesion, oil resistance, heat aging stability, and strong adhesion to plastics, metals, and foams. The adhesive supports multiple bonding modes, including contact, pressure-sensitive, reactivated, and heat-pressed adhesion, making it suitable for industrial, construction, and general-purpose uses.
Bonding rubber to metal and other surfaces.
Adhesion of foams (urethane, polyethylene) and insulating materials like glass wool and rock wool.
Bonding plywood, decorative panels, and soft PVC products.
General-purpose adhesion in construction, automotive, and industrial applications.
Applications requiring strong initial adhesion without temporary fixation.
| Property | 575F (Not Mixed) | After Application / Cured |
|---|---|---|
| Type | Solvent-based chloroprene rubber adhesive | Same |
| Base | Chloroprene rubber | Same |
| Major Solvent | Acetone / MEK / Isopropyl acetate | Evaporated during curing |
| Appearance | Light yellow | Cured elastic film |
| Non-volatiles (wt%) | 29.0 | Same |
| Viscosity (mPa·s, 23°C) | 2,200 | – |
| Application Methods | Brush, spatula, trowel, air spray, roll coater | Same |
| Bonding Mode | Contact, pressure-sensitive, reactivated, heating & pressurized | Cured bond |
| Initial Tensile Shear Strength (MPa) | Plywood×Plywood: 3.64 | – |
| Heat-Resistant Tensile Shear Strength (MPa) | Plywood×Plywood: 1.00 | – |
| Initial Peel Strength (N/mm) | Canvas×Canvas: 7.5 | – |
| Heat-Resistant Peel Strength (N/mm) | Canvas×Canvas: 3.5 | – |
| Temperature Resistance | Up to 80°C (short term) | Same |
| Storage Temperature | Not specified | – |
| Capacity | 180 mL | – |
