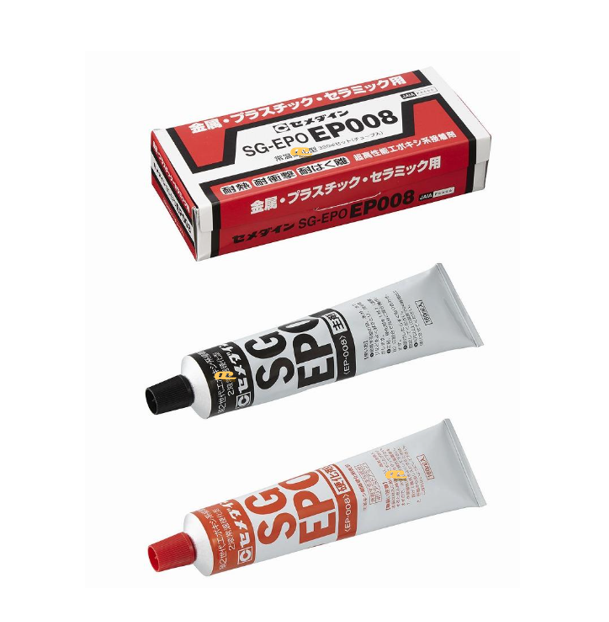

• Item Name: CEMEDINE EP008
• Manufacturer: CEMEDINE CO., LTD.
• Technologies: Two-component flexible epoxy adhesive (epoxy resin + modified polyamide)
• Color: White translucent (base resin), Light brown transparent (hardener)
• Cure Type: Room temperature curing, optional heat cure (80 °C × 1 h)
• Package Size: 320 mL set, 500 g, 15 kg
• Shelf Life: Contact to Techniq VN for details.
CEMEDINE EP008 is a two-part, flexible, anti-sag epoxy adhesive suitable for room-temperature curing. It delivers strong adhesion to a wide variety of materials including metals and plastics. Designed for applications requiring mechanical flexibility, it offers excellent durability, chemical resistance, and heat tolerance. Its anti-sag property makes it suitable for vertical or overhead bonding, and it minimizes stress caused by differences in thermal expansion between bonded materials.
Bonding and assembly of vehicles, electronic parts, and precision equipment.
Adhesion where mechanical flexibility and vibration resistance are required.
Vertical or overhead bonding due to anti-sag property.
Applications exposed to thermal cycles or mechanical stress.
| Property | EP008 (Flexible Anti-Sag Type) |
|---|---|
| Type | Two-part flexible epoxy adhesive (anti-sag) |
| Base | Epoxy resin / Modified polyamide resin |
| Appearance | White translucent / Light brown transparent |
| Non-volatiles (wt%) | 99.0 |
| Viscosity (Pa·s/23°C) | 100 |
| Density (g/cm³) | 0.97 |
| Standard curing | 23°C × 7 days / 80°C × 1 hour |
| Mixing ratio | 1:1 |
| Pot life | 60 min at 23°C |
| Time for effective curing | 12 hours |
| Tensile shear strength (MPa) | 23.0 |
| T-peel strength (N/mm) | 1.8 |
| Hardness (Shore D) | 74 |
| Glass transition point (°C) | 50 |
| Breaking strength (MPa) | 1.2 |
| Elongation at break (%) | 875 |
| Coefficient of water absorption (%) | 1.8 |
| Coefficient of linear expansion | 12 × 10⁻⁵ |
| Volume resistivity (Ω·cm) | 1.50 × 10¹⁵ |
| Surface resistivity (Ω/sq) | 2.95 × 10¹⁶ |
| Dielectric constant (1 kHz) | 5.31 |
| Dielectric loss tangent (1 kHz) | 7.96 × 10⁻² |
| Capacity | 500 g / 15 kg |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
