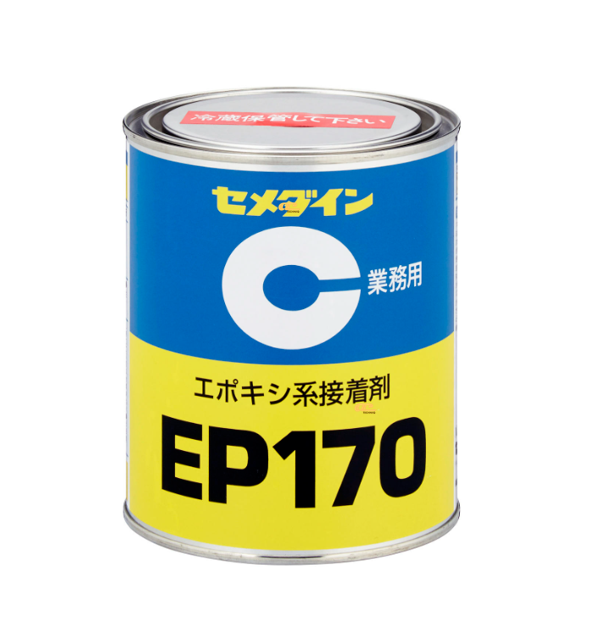

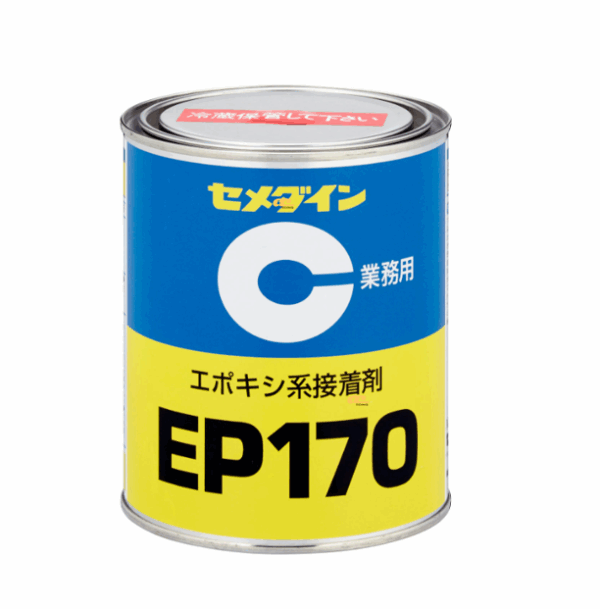

Item Name: EP170
Manufacturer: Cemedine Co., Ltd.
Technologies: One-part heat curing epoxy adhesive (flexible type)
Color: Light yellow
Cure Type: Heat curing (110 °C × 60 min or 120 °C × 30 min)
Package Size: 1 kg
Shelf Life: Contact to Techniq VN for details.
CEMEDINE EP170 is a one-part, heat-curing flexible epoxy adhesive designed for applications requiring high peel resistance and non-sag performance. It provides elastic bonding suitable for materials that may experience thermal expansion or mechanical stress, while maintaining consistent adhesion after curing. Its heat-curing process allows controlled setting without mixing errors, ensuring reliability in demanding industrial or electronic applications.
Elastic bonding of metals and plastics in environments with mechanical vibration or thermal cycling.
Situations requiring high peel resistance and flexibility.
Non-sag applications on vertical or inclined surfaces.
Assembly of components where dimensional changes or stress variations occur.
| Property | EP170 (Not Mixed) | After Curing |
|---|---|---|
| Type | One-part heat curing epoxy adhesive (Flexible type) | Same |
| Base | Epoxy resin | Same |
| Appearance | Light yellow | Cured elastic solid |
| Viscosity (Pa·s, 23°C) | 170 | – |
| Density (g/cm³) | 1.13 | Same |
| Standard Curing | 110°C × 60 min / 120°C × 30 min | Fully cured |
| Tensile Shear Strength (MPa) | – | 15.1 |
| T-Peel Strength (N/mm) | – | 6.67 |
| Hardness | – | Shore D 55 |
| Glass Transition Temperature (°C) | – | 20 |
| Water Absorption Ratio (%) | – | 0.23 |
| Linear Expansion Coefficient | – | 30 ×10⁻⁵ /°C |
| Volume Resistivity (Ω·cm) | – | 3.0 ×10¹⁵ |
| Capacity | 1 kg | – |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
