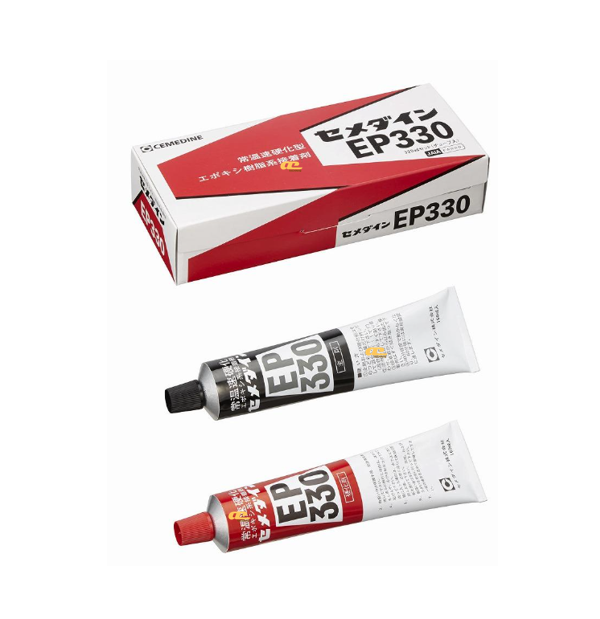

• Item Name: CEMEDINE EP330
• Manufacturer: CEMEDINE CO., LTD.
• Technologies: Two-component epoxy adhesive (30-minute type, room temperature curing)
• Color: Pink translucent (base resin), Light yellow translucent (hardener)
• Cure Type: Room temperature curing, 1:1 mixing ratio
• Package Size: 6 g set, 15 g set, 80 g set, 1 kg, 3 kg
• Shelf Life: Contact to Techniq VN for details.
CEMEDINE EP330 is a fast-curing, two-part epoxy adhesive suitable for room-temperature applications. It provides strong adhesion to a wide range of materials including metals and plastics, ensuring high durability, chemical resistance, and minimal shrinkage. EP330 is designed for rapid bonding and is ideal for applications requiring a short curing time while maintaining excellent mechanical and thermal performance.
Assembly and bonding of vehicles, electronic parts, and precision equipment.
Adhesion of composite members used in construction and sporting equipment.
Applications requiring fast curing and strong mechanical performance.
Adhesion to metals, plastics, and other common engineering materials.
| Property | EP330 |
|---|---|
| Type | Two-part epoxy adhesive curing at room temperature |
| Base | Epoxy resin / Polyamide |
| Appearance | White / Gray / Light yellow translucent (depending on set) |
| Viscosity (Pa·s/23°C) | 600 / 400 / 70 |
| Density (g/cm³) | 1.57 / 1.50 / 1.17 |
| Mixing ratio | 1:1 |
| Standard curing | 23°C × 24 hours |
| Pot life | 30 minutes |
| Time for effective curing | About 1 hour |
| Tensile shear strength (MPa) | 17.5 |
| T-peel strength (N/mm) | 0.47 |
| Hardness (Shore D) | 82 |
| Glass transition point (°C) | 43 |
| Coefficient of water absorption (%) | 2.3 |
| Coefficient of linear expansion | 6.7 × 10⁻⁵ |
| Volume resistivity (Ω·cm) | 3.8 × 10¹¹ |
| Capacity | 320 mL set |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
