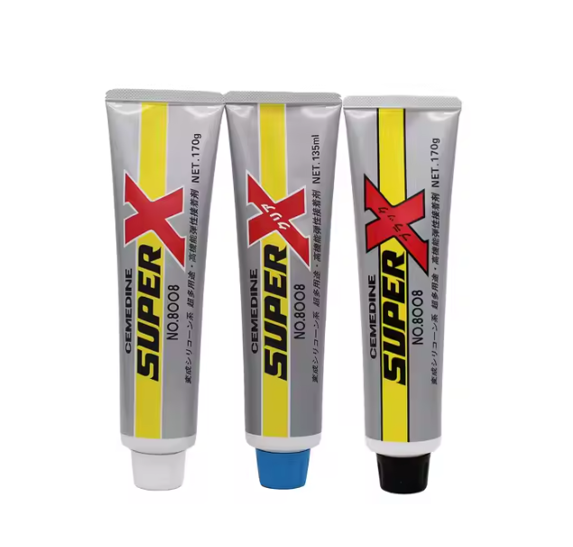

-Item Name: Cemedine Super X (Variants: Super X No.8008, Super X Gold No.777, SX720)
-Manufacturer: Cemedine
-Technologies: One-part, quick cure adhesive with pressure-sensitive, elastic, and solvent-free adhesion
-Color: Not specified
-Cure Type: Moisture cure at room temperature
-Package Size: Contact to Techniq VN for details.
-Shelf Life: Contact to Techniq VN for details.
Cemedine Super X is a one-part, quick-curing adhesive featuring:
It provides strong, durable bonding for a wide range of materials and is used worldwide.
| Property | Value |
|---|---|
| Type | Solvent-free, moisture-curing elastic adhesive |
| Cure Mechanism | Absorbs moisture from the air |
| Initial Pressure-Sensitive Time | ~10 min |
| Temperature Resistance | -60°C to 120°C |
| Siloxane-Free | Yes (No D3-D10 Cyclosiloxane compounds) |
| Property | Value |
|---|---|
| Tensile Shear Strength (SPCC Steel) | 3.32 MPa (CF) |
| Tensile Shear Strength (Aluminum) | 4.26 MPa (CF) |
| Tensile Shear Strength (Stainless Steel) | 2.24 MPa (AF) |
| Tensile Shear Strength (Polycarbonate) | 3.29 MPa (CF) |
| Tensile Shear Strength (ABS) | 3.10 MPa (CF) |
| Tensile Shear Strength (FRP) | 2.92 MPa (CF) |
| Tensile Shear Strength (Polypropylene) | 2.77 MPa (CF5 AF5, primer required) |
| Peeling Adhesive Strength (NBR Rubber) | 0.27 N/mm (AF) |
| Peeling Adhesive Strength (Silicone Rubber) | 0.45 N/mm (AF) |
| Peeling Adhesive Strength (EPDM Rubber) | 2.73 N/mm (CF, after sandpaper treatment) |
CF = Cohesive Failure, AF = Adhesive Failure
| Property | White | Black | L Black | LL Black | Clear |
|---|
| Type | One-component type Elastic Adhesive |
| Standard Type | Standard | Standard | Low viscosity | Low viscosity | Clear Type |
| Base | Special polymer containing silyl group |
| Appearance | White paste | Black paste | Light yellow clear paste | Light yellow clear paste | Clear paste |
| Viscosity (Pa·s at 23°C) | 85.0 | 85.0 | 22.0 | 19.0 | 82.6 |
| Specific Gravity (g/cm³) | 1.27 | 1.27 | 1.25 | 1.22 | 1.07 |
| Skin Over Time (23°C, min) | 11 | 11 | 11 | 12 | 8.5 |
| Adhesive Property |
| – Tensile Shear Adhesive Strength (MPa) | 4.0 | 4.0 | 3.5 | 3.3 | 3.5 |
| – T-Type Peeling Adhesive Strength (N/mm) | 2.0 | 2.0 | 2.1 | 1.0 | 3.4 |
| Curing Properties |
| – Hardness (Shore A) | 43 | 43 | 35 | 34 | 50 |
| – Glass Transition Temperature (°C) | -63 | -63 | -68 | -59 | -64 |
| – Breaking Strength (MPa) | 2.5 | 2.5 | 1.3 | 0.9 | 4.0 |
| – Elongation at Break (%) | 200 | 200 | 320 | 200 | 170 |
| Electric Characteristics |
| – Volume Resistivity (Ω·cm) | 1.1 × 10¹² | 4.7 × 10¹¹ | 1.2 × 10¹² | 1.0 × 10¹² | 1.3 × 10¹² |
| – Dielectric Constant (100Hz) | 6.15 | 7.07 | 6.99 | 6.56 | 3.89 |
| – Dielectric Loss Tangent (100Hz) | 0.22 | 0.34 | 0.24 | 0.25 | 0.11 |
| Grade | RoHS | RoHS | RoHS | RoHS | RoHS |
| Capacity | 170g / 333ml | 170g / 333ml | 170g / 333ml | 170g / 333ml | 135ml / 333ml |
