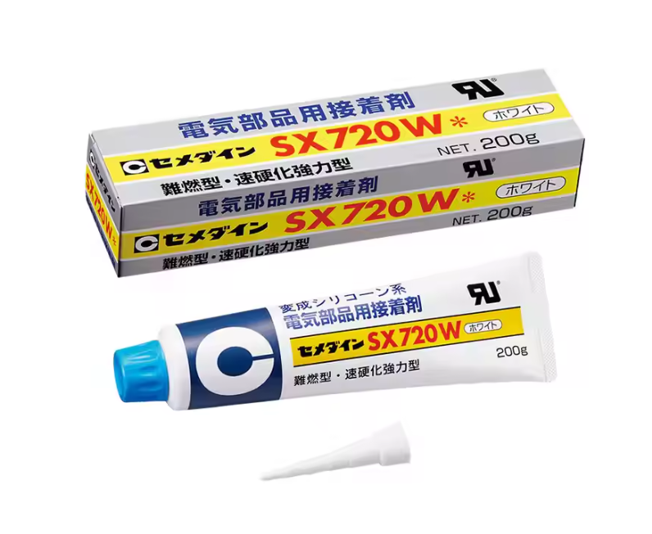

-Item Name: CEMEDINE SX720 ADHESIVE
-Manufacturer: Cemedine
-Technologies: Special polymer containing silyl group
-Color: White paste or Black paste (depending on the variant)
-Cure Type: Moisture cure at room temperature
-Package Size: 200g / 333ml
-Shelf Life: Contact to Techniq VN for details.
CEMEDINE SX720 is a non-flammable (UL94 V-0 listed), one-part, solventless adhesive designed for electrical components. It provides:
| Property | SX720W (RoHS) | SX720WH (RoHS) | SX720B (RoHS) | SX720BH (RoHS) |
|---|---|---|---|---|
| Main Component | Special polymer containing silyl group | Special polymer containing silyl group | Special polymer containing silyl group | Special polymer containing silyl group |
| Appearance | White paste | White paste | Black paste | Black paste |
| Viscosity (Pa.s at 23°C) | 45 | 85 | 45 | 85 |
| Specific Gravity (g/cm³) | 1.56 | 1.57 | 1.56 | 1.57 |
| Tack-Free Time (min) | 10 | 8 | 10 | 8 |
| Property | SX720W (RoHS) | SX720WH (RoHS) | SX720B (RoHS) | SX720BH (RoHS) |
|---|---|---|---|---|
| Tensile Shear Strength (N/mm²) | 3.4 | 3.2 | 3.4 | 3.2 |
| T-Peel Adhesion Strength (N/mm) | 1.0 | 1.0 | 1.0 | 1.0 |
| Hardness (Shore A) | 78 | 81 | 78 | 82 |
| Glass Transition Temperature (°C) | -64 | -69 | -63 | -69 |
| Breaking Strength (N/mm²) | 3.4 | 3.2 | 3.4 | 3.2 |
| Breaking Elongation (%) | 100 | 50 | 100 | 50 |
| Linear Expansion Coefficient | 1.1×10⁻⁴ | 7.3×10⁻⁵ | 8.7×10⁻⁵ | 8.1×10⁻⁵ |
| Property | SX720W (RoHS) | SX720WH (RoHS) | SX720B (RoHS) | SX720BH (RoHS) |
|---|---|---|---|---|
| Volume Resistivity (Ω·cm) | 2.1×10¹² | 1.7×10¹² | 2.3×10¹² | 1.4×10¹² |
| Dielectric Constant (100Hz) | 6.2 | 5.9 | 6.6 | 6.2 |
| Dielectric Loss Tangent (100Hz) | 0.23 | 0.31 | 0.27 | 0.28 |
| Thermal Conductivity (W/m·K) | 0.91 | 0.92 | 1.09 | 1.00 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
