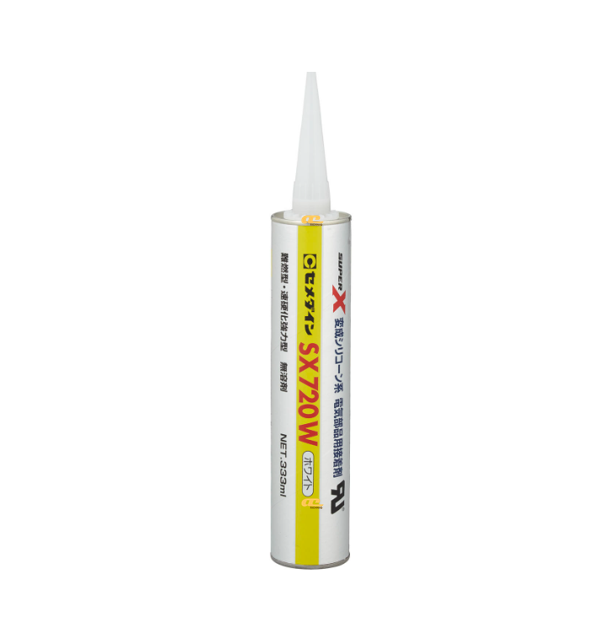

• Item Name: SX720 (UL94 V-0 Certified)
• Manufacturer: CEMEDINE CO., LTD.
• Technologies: One-part elastic adhesive (special polymer with silyl group)
• Color: White, Black
• Cure Type: Moisture curing at ambient temperature
• Package Size: 200 g, 333 mL
• Shelf Life: Contact to Techniq VN for details.
SX720 is a one-component, room-temperature curing, flame-retardant elastic adhesive designed for electronic devices. It is UL94 V-0 certified, ensuring nonflammability, and provides quick initial adhesion with high tack for various substrates. The adhesive exhibits excellent durability under thermal cycling and vibration. It is safe, environmentally friendly, and free of halogen, antimony oxide, phosphorus-based materials, and low-molecular-weight cyclosiloxanes (D3–D10). SX720 is suitable for bonding, fixing, and sealing components in electronics while complying with RoHS standards.
Fixing circuit boards, condensers, and coils.
Sealing power supplies and transformers for insulation.
Waterproofing and sealing of electronic components.
Applications requiring high initial adhesion and long-term durability under heat, vibration, or mechanical stress.
| Property | SX720W | SX720WH | SX720B | SX720BH |
|---|---|---|---|---|
| Application / Features | Electronic devices, UL94 V-0 Certified | Same | Same | Same |
| Type | One-component elastic adhesive | Same | Same | Same |
| Base | Special polymer containing silyl group | Same | Same | Same |
| Appearance | White paste | White paste | Black paste | Black paste |
| Viscosity (Pa·s/23°C) | 42 | 82 | 42 | 82 |
| Specific gravity (g/cm³) | 1.59 | 1.58 | 1.59 | 1.58 |
| Skin-over time (23°C) | 9 min | 7 min | 9 min | 7 min |
| Tensile shear strength (MPa) | 4.0 | 3.1 | 4.0 | 3.1 |
| T-peel strength (N/mm) | 0.9 | 1.1 | 0.9 | 1.1 |
| Hardness (Shore A) | 78 | 78 | 78 | 78 |
| Glass transition point (°C) | -60 | -62 | -60 | -62 |
| Breaking strength (MPa) | 3.8 | 3.6 | 3.8 | 3.6 |
| Elongation at break (%) | 40 | 40 | 40 | 40 |
| Volume resistivity (Ω·cm) | 3.0 × 10¹² | 2.0 × 10¹² | 1.5 × 10¹² | 1.6 × 10¹² |
| Dielectric constant (100 Hz) | 6.3 | 6.0 | 7.0 | 6.2 |
| Dielectric loss tangent (100 Hz) | 0.4 | 0.3 | 0.4 | 0.3 |
| Grade | RoHS | RoHS | RoHS | RoHS |
| Capacity | 200 g / 333 mL | 200 g / 333 mL | 200 g / 333 mL | 200 g / 333 mL |
