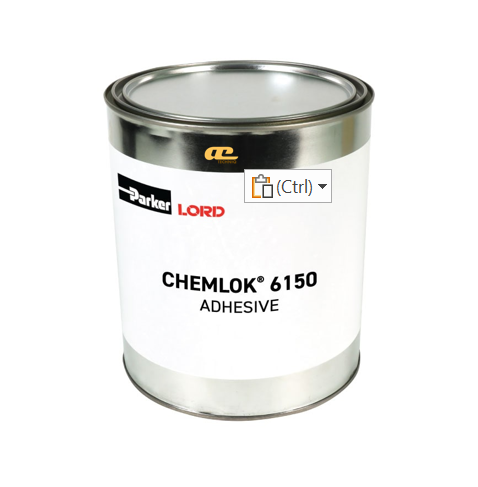

• Item Name: Chemlok® 6150
• Manufacturer: Parker Lord (a Parker Hannifin company)
• Technologies: Solvent-based adhesive (non-chlorinated), one- or two-coat system, suitable for a wide range of elastomers and substrates
• Color: Black liquid
• Cure Type: Vulcanization bonding; drying time ~20–40 minutes at room temperature, accelerated with heat
• Package Size: Contact Techniq VN for details.
• Shelf Life: 12 months (unopened, 21–27 °C storage, moisture-protected)
Chemlok® 6150 is a one-coat adhesive formulated to bond a wide range of elastomers to metals, plastics, and fabrics. It consists of polymers, organic compounds, and mineral fillers dispersed in an organic solvent system. The adhesive offers excellent durability, environmental resistance, and compatibility with existing production lines. It can be applied as a single-coat or as a covercoat in a two-coat system, reducing labor and costs while ensuring strong adhesion.
Bonding elastomers: NR, IR, SBR, BR, CR, NBR, IIR, EPDM, ECO to metal and non-metal substrates.
Suitable for stainless steel, aluminum, brass, and other nonferrous substrates.
Effective in harsh environments requiring heat and moisture resistance.
Can be applied by brush, dip, spray, roll coat, or other uniform coating methods.
Used as a one-coat system (17.8–30.5 µm film) or covercoat over primer (15.2–20.3 µm film).
| Property | Value | Condition/Notes |
|---|---|---|
| Appearance | Black liquid | Visual |
| Viscosity | 200 – 1000 cps | Brookfield LVT, spindle 2, 30 rpm @ 25°C |
| Density | 930 – 980 kg/m³ (7.76 – 8.18 lb/gal) | At 25°C |
| Solids Content | 21 – 25 % | By weight |
| Flash Point | 28°C (82°F) | Pensky-Martens |
| Solvent | Xylene | Main solvent system |
| Dry Film Thickness | 17.8 – 30.5 µm (one-coat); 15.2 – 20.3 µm (covercoat) | Recommended range |
| Shelf Life | 1 year | 21–27°C, unopened container |
