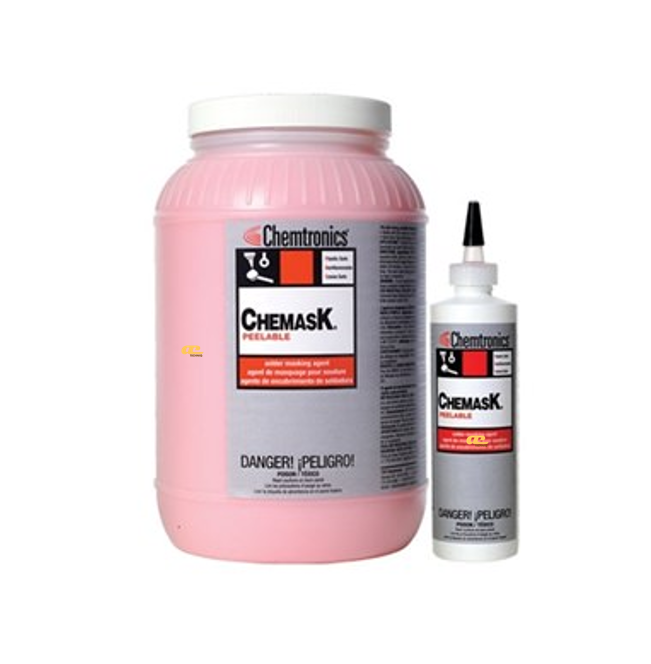

• Item Name: Chemtronics Chemask® (Product# CM8, CM1)
• Manufacturer: Chemtronics
• Technologies: Peelable solder masking agent, natural latex rubber
• Color: Pink
• Cure Type: Fast curing, ambient temperature (tack-free 15 min, full cure 30 min @ 25°C)
• Package Size: CM8: 8 fl. oz. / 236 mL liquid; CM1: 1 gal. / 3.7 L liquid
• Shelf Life: 2 years
Chemask® Solder Masking Agent is a fast-curing, peelable compound based on natural latex rubber. It provides temporary protection for printed circuit boards during wave soldering and conformal coating processes. With temperature stability up to 515°F (268°C), it cures quickly, is compatible with common fluxes and solvents, and leaves no residue after removal. The product is RoHS compliant, non-flammable, and environmentally safe with zero ODP (ozone depletion potential).
Protecting component-free areas during soldering
Shielding components, pin connectors, and sockets
Safeguarding temperature-sensitive components during wave soldering
Protecting board areas during conformal coating
| Property | Before Use / Unmixed | After Cure / Mixed (if applicable) |
|---|---|---|
| Base Material | Natural latex rubber | Peelable cured mask |
| Color | Pink | Pink (peelable) |
| Solvent Stability | Stable in hydrocarbons, HFCs, water, chlorinated solvents | Maintains integrity in solvents |
| Flux Compatibility | All types | Compatible with flux residues |
| Temperature Stability | — | Up to 515°F (268°C) |
| Drying Time (Tack-Free) | ~15 min @ 25°C (10 mils) | Fully cured in ~30 min @ 25°C |
| Viscosity (@ 25°C) | 20,000–28,000 cps (±500) | Solid peelable mask |
| Solids Content | ~60% | — |
| Flash Point | Nonflammable | Nonflammable |
| Weight/Gallon | ~7.2 lbs. | — |
| Shelf Life | 2 years | — |
| Removal | — | Peelable by hand/tweezers |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
