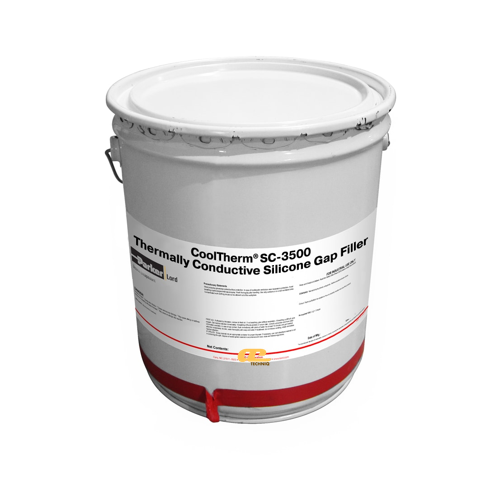

• Item Name: CoolTherm® SC-3500
• Manufacturer: Parker Lord (a Parker Hannifin brand)
• Technologies: Two-component silicone, addition-curing polydimethylsiloxane polymer
• Color: Resin – Off-white paste; Hardener – Pink paste; Mixed – Light pink paste
• Cure Type: Room temperature cure (24h at 25°C) or accelerated cure (60 min at 80°C)
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 9 months (resin), 5 months (hardener)
CoolTherm® SC-3500 is a two-component, thermally conductive silicone gap filler designed for electronic applications requiring efficient heat transfer. It combines high thermal conductivity with low volatility, minimal stress during cure, and excellent environmental resistance. Based on an addition-curing polydimethylsiloxane polymer, it remains stable under heat and confined conditions. The material is UL 94 V-0 rated, ensuring strong flame retardancy, and is suitable for long-term reliability in electronic assemblies.
Filling gaps in electronic assemblies to enhance heat dissipation.
Ideal for sensitive components requiring low stress and low shrinkage during cure.
Applied with handheld cartridges or automated meter/mix/dispense systems.
Suitable for room temperature cure (24 h at 25°C) or accelerated cure (60 min at 80°C).
Designed for use in environments demanding flame resistance, low outgassing, and strong durability.
| Property | SC-3500 Resin | SC-3500 Hardener | Mixed |
|---|---|---|---|
| Appearance | Off-white Paste | Pink Paste | Light Pink Paste |
| Viscosity, cP @ 25°C (10/s shear) | 114,000 | 80,000 | — |
| Specific Gravity | 3.3 | 3.3 | 3.3 |
| Working Time, min @ 25°C | — | — | 60 |
Cured Properties
Thermal Conductivity: 3.5 W/m·K
Hardness: Shore OO 80
Tensile Strength: 0.23 MPa (33 psi)
Lap Shear Strength (Al, 10 mm/min): 0.14 MPa (20 psi)
Elongation at Break: 50%
Elastic Modulus: 1.50 MPa
Volume Resistivity: 3.5 × 10¹³ ohm-cm
Dielectric Strength: 6.3 kV/mm (161 V/mil)
Dielectric Constant (1 MHz): 7.0
Dissipation Factor (1 MHz): <1%
Cyclic Siloxane Content: <100 ppm
This gap filler offers an excellent balance of high thermal conductivity, electrical insulation, and mechanical compliance, ensuring long-term protection and reliability in thermal management applications.
