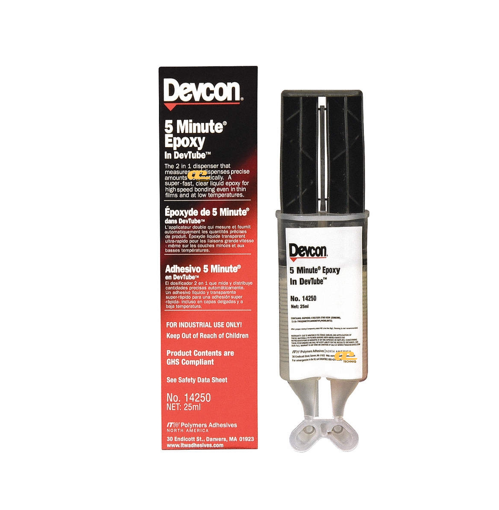

• Item Name: Devcon 5 Minute Epoxy
• Manufacturer: ITW Performance Polymers
• Technologies: Epoxy adhesive / encapsulant
• Color: Light Amber
• Cure Type: Ambient temperature, rapid-curing
• Package Size: 25ml Dev-tube; 70g Twin-tube; 50ml Cartridge; 400ml Cartridge
• Shelf Life: 3 years
Devcon 5 Minute Epoxy is a rapid-curing, general-purpose adhesive and encapsulant that forms a hard, rigid bond or coating within minutes. It is 100% reactive (solvent-free), offers good dielectric strength, and provides resistance against many solvents.
Quick metal-to-metal bonding and repairs.
Potting and encapsulation of electronic components and assemblies.
Bonding of metals, fabrics, ceramics, glass, wood, and concrete in various combinations.
| Property | Value |
|---|---|
| Colour (Unmixed) | Light Amber |
| Mix Ratio (by Volume & Weight) | 1:1 |
| Mixed Viscosity | 10,000 cps |
| Mixed Density | 1.10 g/cc |
| Working Time (28 g @ 23°C) | 3–6 minutes |
| Fixture Time | 10–15 minutes |
| Functional Cure @ 23°C | 45–60 minutes |
| Full Cure | 12 hours |
| Property | Value |
|---|---|
| Adhesive Tensile Shear (ASTM D1002) | 13 MPa |
| T-Peel | 4–5 N/10 mm |
| Tensile Elongation | 1% |
| Service Temperature (Dry) | -40 to 93°C |
| Cured Hardness (ASTM D2240) | 85D |
| Specific Volume | 909 cm³/kg |
| Solids by Volume | 100% |
| Dielectric Strength (ASTM D149) | 19.6 kV/mm |
| Chemical | Resistance |
|---|---|
| Acetic Acid (10%) | Fair |
| Ammonia | Excellent |
| Cutting Oil | Excellent |
| Petrol (Unleaded) | Poor |
| Hydrochloric Acid (10%) | Poor |
| Kerosene | Very Good |
| Mineral Spirits | Excellent |
| Sodium Hydroxide (10%) | Very Good |
| Acetone | Poor |
| Corn Oil | Excellent |
| Ethanol | Excellent |
| Glycols/Antifreeze | Excellent |
| Isopropanol | Excellent |
| MEK | Poor |
| Motor Oil | Excellent |
| Sulphuric Acid (10%) | Poor |
