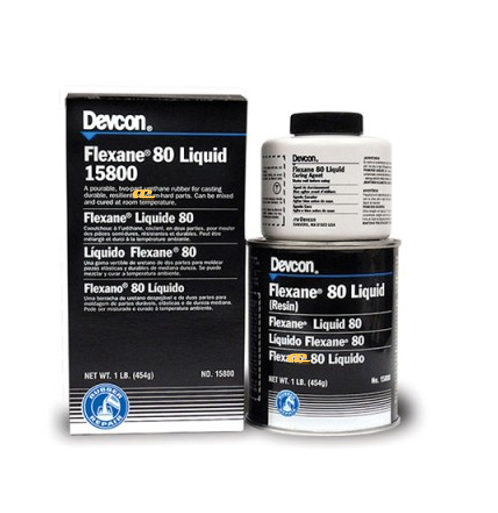

• Item Name: Devcon Flexane 80 Liquid
• Manufacturer: ITW Polymers & Fluids
• Technologies: Two-part liquid urethane compound
• Color: Black
• Cure Type: Room temperature curing, 10-hour demoulding, full cure 7 days @ 24 °C
• Package Size: 450 g kit (#D15800); 4.5 kg kit (#D15810)
• Shelf Life: Minimum 2 years
Flexane® 80 Liquid is a medium-viscosity, castable, non-shrinking urethane compound formulated for repairs, tooling, and moulding applications that require a tough, rubber-like material.
Two-part compound, mixes easily
Cures at room temperature (no heat required)
Even pouring, self-leveling with 10-hour demould time
Produces flexible, abrasion-resistant, high-strength urethane with low shrinkage
Available in 450 g and 4.5 kg kits
Reproduction of low-to-medium volume or discontinued rubber parts
Flexible moulds, non-scratching holding fixtures, and linings
Filling and repairing concrete control joints
Encapsulation of wires and electronics subject to impact, vibration, expansion, and contraction
Property | Value | Standard |
---|---|---|
Colour | Black | — |
Mix Ratio (Resin:Hardener) | 77:23 (by weight) | — |
Mixed Viscosity | 10,000 cps | — |
Work Time (450 g @ 24°C) | 30 min | — |
Cure Time | 16 h | — |
Demoulding Time | 10 h | — |
% Solids by Volume | 100% | — |
Specific Volume | 958 cm³/kg | — |
Cure Shrinkage | 0.0018 cm/cm | ASTM D2566 |
Hardness | Shore A 87 | ASTM D2240 |
Tear Resistance | 62.5 kg/cm | ASTM D624 |
Tensile Strength | 14.5 MPa | ASTM D638 |
Maximum Elongation | 650% | ASTM D412 |
Abrasion Resistance | 285 mg loss/1000 cycles (H18 wheel) | — |
Dielectric Strength | 13,800 V/mm | ASTM D149 |
Max Operating Temperature | Wet: 49°C, Dry: 82°C | — |
Coverage (450 g kit) | 684 cm² @ 6 mm thickness | — |
