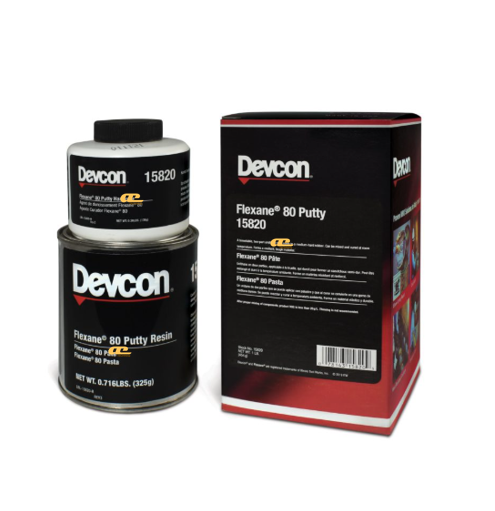

• Item Name: DEVCON® FLEXANE® 80 Putty
• Manufacturer: ITW Polymers & Fluids
• Technologies: Trowelable urethane compound
• Color: Black
• Cure Type: Room temperature curing
• Package Size: 450 g kit
• Shelf Life: 24 months
DEVCON® Flexane® 80 Putty is a two-component, trowelable urethane compound designed for repairing, rebuilding, and lining process equipment subjected to wear, impact, abrasion, vibration, and thermal expansion/contraction. It cures at room temperature to form a medium-hard rubber (Shore A 87) with strong adhesion to a wide range of substrates including metal, concrete, rubber, wood, fiberglass, and rigid plastics.
Key Features & Benefits:
Easy trowel application, cures without heat.
Medium-hard, tough, flexible rubber finish.
Low shrinkage, excellent adhesion.
Bonds to diverse surfaces with suitable primers.
Provides wear resistance and vibration damping.
100% solids with high dielectric strength.
Shelf life: 2 years (sealed, 10–40°C storage).
Repair and rebuild conveyor belts.
Line process equipment to dampen impact and vibration.
Fill and line concrete control joints.
Cast flexible moulds, fixtures, and parts.
Potting and encapsulating components.
| Property | Test Method | Unit | Value | Conditions / Notes |
|---|---|---|---|---|
| Colour | – | – | Black | – |
| Mix Ratio (Resin:Hardener) | – | By weight | 72:28 | Pre-measured units |
| Mixed Viscosity | – | – | Putty | – |
| Work Time (450 g) | – | min | 20 | At 24°C |
| Cure Time | – | h | 12 | Full cure: 7 days @ 24°C |
| Demoulding Time | – | h | 10 | – |
| % Solids by Volume | – | % | 100 | – |
| Specific Volume | – | cm³/kg | 850 | – |
| Cure Shrinkage | ASTM D2566 | cm/cm | 0.0014 | – |
| Hardness | ASTM D2240 | Shore A | 87 | – |
| Tear Resistance | ASTM D624 | kg/cm | 53.4 | – |
| Tensile Strength | ASTM D412 | MPa | 11.7 | – |
| Maximum Elongation | ASTM D412 | % | 300 | – |
| Dielectric Strength | ASTM D149 | V/mm | 13,800 | – |
| Max. Operating Temp. | – | °C | 49 (wet), 82 (dry) | – |
| Coverage (per 450 g kit) | – | cm² @ 6 mm | 606 |
