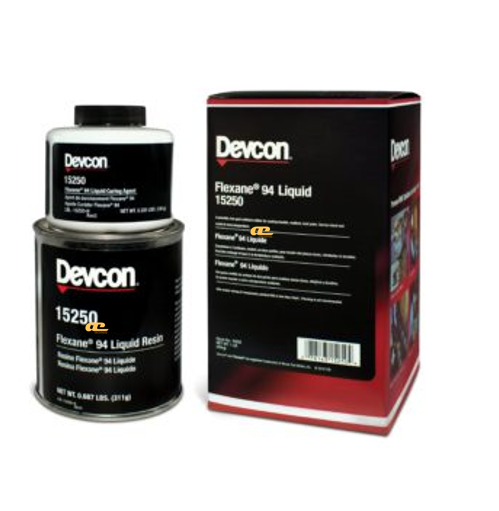

• Item Name: Flexane® 94 Liquid
• Manufacturer: ITW Performance Polymers
• Technologies: Two-part, room-temperature curing, non-shrinking liquid urethane compound
• Color: Black
• Cure Type: Room temperature cure; 5-hour demolding, full cure in 7 days @ 21 °C
• Package Size: 1 lb kit (Item No. 15250); 10 lb kit (Item No. 15260)
• Shelf Life: Contact to Techniq VN for details
Flexane® 94 Liquid is a low-viscosity, castable, non-shrinking urethane compound.
Room temperature curing, no heat required
Produces strong, abrasion-resistant, flexible rubber-like parts
Black in color, 100% solids, non-shrinking
Available in 1 lb. kit (Item No. 15250) and 10 lb. unit (Item No. 15260)
Reproduce parts: Low- to medium-volume or discontinued rubber components
Molding: Flexible molds, non-scratching holding fixtures, linings
Encapsulation: Wires and electronics subject to impact, vibration, thermal expansion/contraction
Repairs: Rubber linings, gaskets, rollers, or vibration pads
Primers required for adhesion:
Metals → FL-10 Primer (FL-20 if immersed in water)
Rubber, wood, fiberglass, concrete, rigid plastics → FL-20 Primer (2 coats for plastics)
| Property | Value |
|---|---|
| Mix Ratio (by weight) | 69 resin : 31 curing agent |
| Mixed Viscosity | 6,000 cP |
| Pot Life @ 24 °C | 10 min |
| Coverage (1/4”, 6.35 mm) | 106 in²/lb (1508 cm²/kg) |
| Specific Volume | 26.5 in³/lb (0.957 cm³/g) |
| Functional Cure | 16 hrs |
| Demolding Time | 5 hrs |
