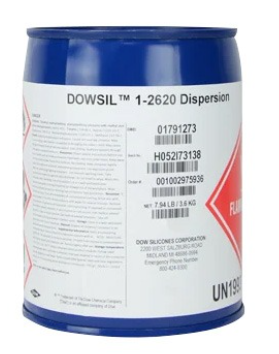

Brand Name: DOWSIL™ 1-2620 Dispersion
Package Size: Available in 18.1 kg (40 lb) pails
DOWSIL™ 1-2620 Dispersion RTV Elastoplastic Conformal Coating
Typical Properties
| Property | Unit | Value |
|---|---|---|
| Color | – | Transparent-Yellow |
| Viscosity | cP (mPa·s) | 150 |
| Specific Gravity (Uncured) | – | 1 |
| Specific Gravity (Cured) | – | 1.11 |
| Tack-Free Time at 25°C | minutes | 5 |
| Tack-Free Time at 60°C/15% RH | minutes | 2 |
| Durometer Hardness | Shore A | 80 |
| Dielectric Strength | volts/mil (kV/mm) | 550 (22) |
| Volume Resistivity | ohm·cm | 4.6 × 10¹³ |
| Dielectric Constant at 100 Hz | – | 2.69 |
| Dielectric Constant at 100 kHz | – | 2.68 |
| Dissipation Factor at 100 Hz | – | 0.002 |
| Dissipation Factor at 100 kHz | – | 0.0003 |
| Non-Volatile Content (NVC) – Forced Draft Volatility | % | 59 |
DOWSIL™ 1-2620 Dispersion RTV Elastoplastic Conformal Coating is a one-part, transparent, low-viscosity silicone resin solution designed to protect electronic components. Upon curing, it forms a tough, resilient, and abrasion-resistant surface. This solvent-borne resin coating cures at room temperature, with an option for mild heat acceleration after solvent flash-off to speed up in-line processing. It contains a UV indicator to facilitate automated inspection and meets UL 94 V-0 flammability standards, as well as MIL-I-46058C and IPC-CC-830B specifications.
Applications
This conformal coating is suitable for:
Electric Motor Reliability with Huntsman ARALDITE® Encapsulation Potting – Casting
Araldite® LY 8615 / Aradur® 8615 Composite Wheels-aerospace-grade composite parts
Araldite®/Aradur 917-1/Accel 960-1, Araldite®/Aradur 1571, and LY3508/Aradur 3478 – Systems for Composite Pressure Vessels
Araldite® CW 30334 CI / Aradur® HW 30335 CI Encapsulation for motor stators, transformer coils, and high-voltage devices
