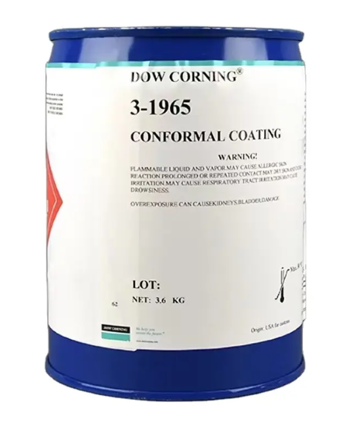

Brand Name: DOWSIL™ 3-1965 Conformal Coating
Package Size: Available in 3.6 kg pails and 18.1 kg pails.
Shelf Life: 12 months (1 year) from the date of manufacture.
Product Overview
DOWSIL™ 3-1965 Conformal Coating is a one-part, transparent, solventless, low-viscosity silicone coating designed to protect electronic assemblies from environmental factors. It cures to a soft, low-stress elastomer at room temperature, with the option for heat acceleration to expedite processing. The coating includes a UV indicator to facilitate inspection and is free of added solvents. It meets industry standards such as UL 94 V-0, MIL-I-46058C Amendment 7, and IPC-CC-830 Amendment 1.
Applications
DOWSIL™ 3-1965 Conformal Coating is suitable for use with:
Typical Properties
The typical properties of DOWSIL™ 3-1965 Conformal Coating are summarized in the following table:
| Property | Unit | Value |
|---|---|---|
| Color | – | Transparent |
| Viscosity | cP (Pa·s) | 115 (0.115) |
| Specific Gravity (Cured) | – | 0.99 |
| Tack-Free Time at 25°C | minutes | 6 |
| Durometer Hardness | Shore A | 33 |
| Dielectric Strength | volts/mil (kV/mm) | 425 (17) |
| Volume Resistivity | ohm·cm | 8.7 × 10¹⁴ |
| Dissipation Factor at 100 Hz | – | 0.001 |
| Dissipation Factor at 100 kHz | – | <0.0002 |
| UL Flammability Classification | – | 94 V-0 |
| MIL Specification | – | MIL-I-46058C Amendment 7 |
| Agency Listing | – | IPC-CC-830, Amendment 1 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
