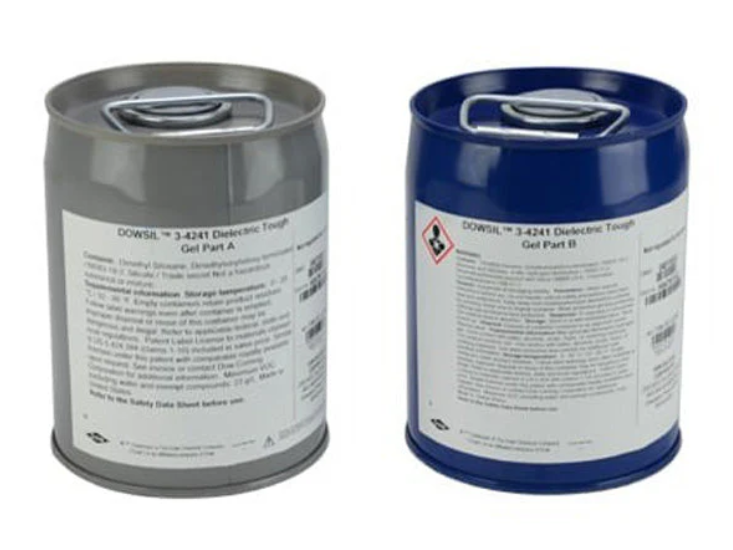

Item Name: DOWSIL™ 3-4241 Dielectric Tough Gel
Manufacturer: Dow
Technologies: Silicone dielectric tough gel
Color: Translucent green (blue and yellow parts mix to green, with UV indicator)
Cure Type: Fast heat cure / Room temperature conditional primerless adhesion
Package Size: 210 mL dual cartridges, 1 gallon pails, 5 gallon pails, 55 gallon drums
Shelf Life: 12 months
DOWSIL™ 3-4241 is a two-part, translucent green dielectric tough gel designed for electronic encapsulation. It offers fast heat cure, primerless adhesion, mechanical strength, and flame resistance (UL 94 V-1 rating). With a built-in UV indicator for automated inspection and long working time for processing flexibility, it provides enhanced durability and reliable insulation. When mixed, its two components (blue and yellow) turn green, ensuring correct blending and minimizing processing errors.
Encapsulation and protection of PCB assemblies.
Electrical insulation for high-voltage applications.
Stress relief against thermal and mechanical stresses.
Situations requiring added flame resistance.
Optoelectronic devices needing stable refractive index and stress-relieving properties.
Repairable encapsulation layers for PCB rework and maintenance.
| Property | Unit | Result |
|---|---|---|
| Still Not Mixed | ||
| Viscosity (Part A) | cP / mPa·s / Pa·s | 425 / 425 / 0.4 |
| Viscosity (Part B) | cP / mPa·s / Pa·s | 400 / 400 / 0.4 |
| After Mixed / Cured | ||
| Specific Gravity (Cured) | – | 0.98 |
| Working Time @ 25°C | hours | > 1 |
| Cure Time @ 25°C | hours | 10.6 |
| Heat Cure Time @ 125°C | minutes | 2 |
| Durometer | Shore 00 | 63 |
| Unprimed Adhesion – 180° Peel Strength | ppi / N/cm² | 32 |
| Dielectric Strength | volts/mil / kV/mm | 450 / 17 |
| Dielectric Constant @ 100 Hz | – | 2.60 |
| Dielectric Constant @ 100 kHz | – | 2.61 |
| Volume Resistivity | ohm·cm | 3.3 × 10¹⁴ |
| Dissipation Factor @ 100 Hz | – | 0.021 |
| Dissipation Factor @ 100 kHz | – | 0.0002 |
| Agency Listing | – | UL 94 V-1 |
| Shelf Life @ 25°C | months | 12 |
